Four Link Type
The four link type is modeled in the _quad_link_advanced template provided in the acar_concept database. It allows you to select configuration between Basic, Panhard Rod, Watts Link, Multi-link.
The parameter variable pvs_four_link_type is used to select configuration. Where, '0', '1', '2', '3 are mapped to Basic, Panhard Rod, Watts Link, Multi-link respectively. It is used to activate appropriate groups created for the Four Link Type.
The following graphics shows Panhard Rod, Watts Link and Multi link configuration.

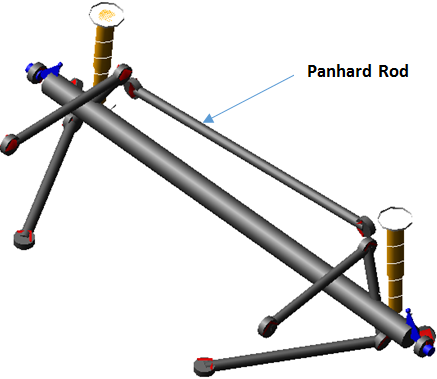

Figure 11 Panhard Rod Type Quad-Link Axle Suspension

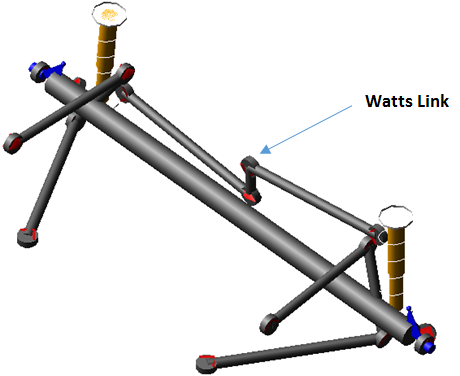

Figure 12 Watts Link Type Quad-Link Axle Suspension

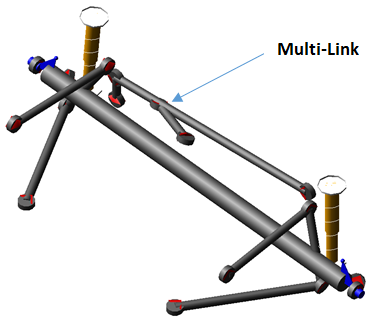

Figure 13 Multi-Link Type Quad-Link Axle Suspension
