Graphics

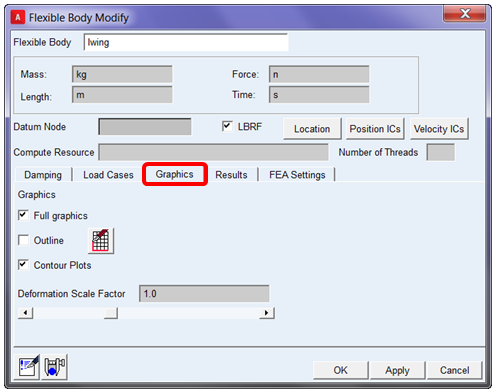

The settings on the Graphics tab behave the same as for the linear flexible body. That is, we can either see the full graphics (all nodes and elements available in both wireframe and shaded rendering), or for more efficient animations, we can define an outline and then view the outline of the flexible body deforming during animation. Contour Plots enables color contour plots to be displayed during animation. Deformation Scale factor can be used to exaggerate or minimize the actual deformation of the flexible body during animation. For more detail, see the dialog box help accessible by pressing the F1 key from anywhere within the dialog.
