Result Requests

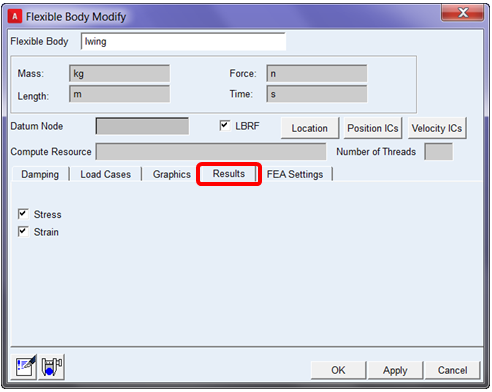

These checkboxes control the stress and strain output to the MSC Nastran result file (.op2 file) during the simulation. If these options are not set, no stress or strain will be computed during the simulation for this flexible body and you will not be able to post-process these channels. If they are set, then within Adams PostProcessor you will be able to post-process VonMises stress and strain. To post-process other stress and strain channels the complete MSC Nastran output files are written to the Adams working directory and can be used in a finite element postprocessor like Patran or SimXpert.
