Follower Motion Construction
A Follower motion is a plot describing the displacement of Follower with respect to Time or Angle of Rotation of Cam.
The displacement of the follower is generally described using the following terms.
■Rise
■Return/Fall
■Dwell

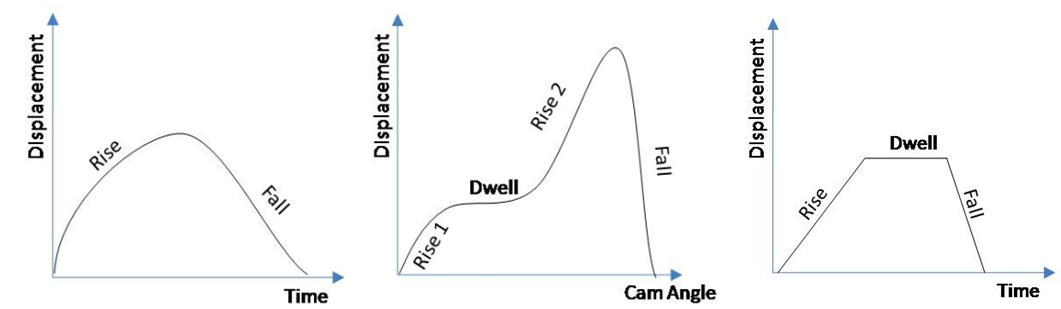

The following are some sample Follower motion curves:
The Follower motion can be defined either based on
■Time
■Cam Angle

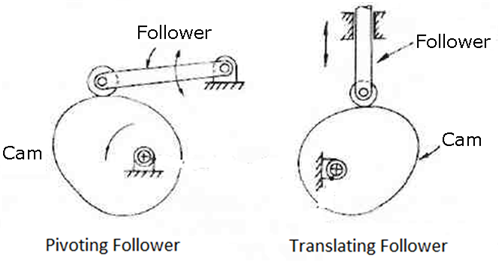

The Follower motion can either be
■Translational
■Pivotal
The Follower motion can be created in 3 ways
■Function Builder - To create a curve by appending functions (maximum of 21 functions) to create a follower motion curve.
The functions that can be involved are
♦Constant
♦Step
♦SHF (simple harmonic function)
♦Polynomial
■Import Data Points - To import a .csv file which contains the X-Y data of the follower motion curve. An example data file format can be found in <topdir>\amachinery\examples\cam\follower_motion_builder.
■Create Data Points - To manually input the X-Y data of the follower motion curve.
The Follower motion developed/imported/inputted can either be viewed in tabular form and as plot in the consequent page. The Acceleration and the Jerk of the Motion an also be viewed. The data if required can be optimized.
