Wrapping Order Belt

Machinery → wrapping order

For the option
Do the following
Wrapping order
Enter the wheels (pulleys or tensioners) around which the belt should be wrapped.
Note: Wrapping order should start from pulley and not tensioner.
Reverse

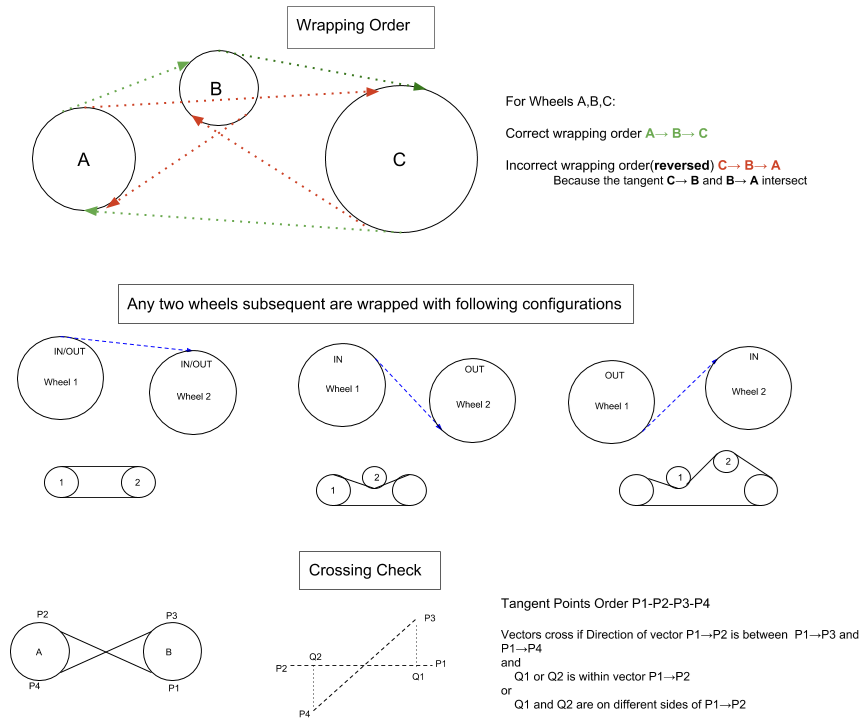

Reverse the wheels list (A-B-C to C-B-A as shown in image above) in order to reverse the sequence in which wheels should be wrapped. Reversing the wrapping order may help to find tangents to wrap the belt around pulleys.
