Wrapping Order Chain

Machinery → wrapping order

For the option
Do the following
Wrapping order
Enter the wheels (sprockets or guides) around which the chain should be wrapped.
Note: Wrapping order should start from sprocket and not guide.
Reverse

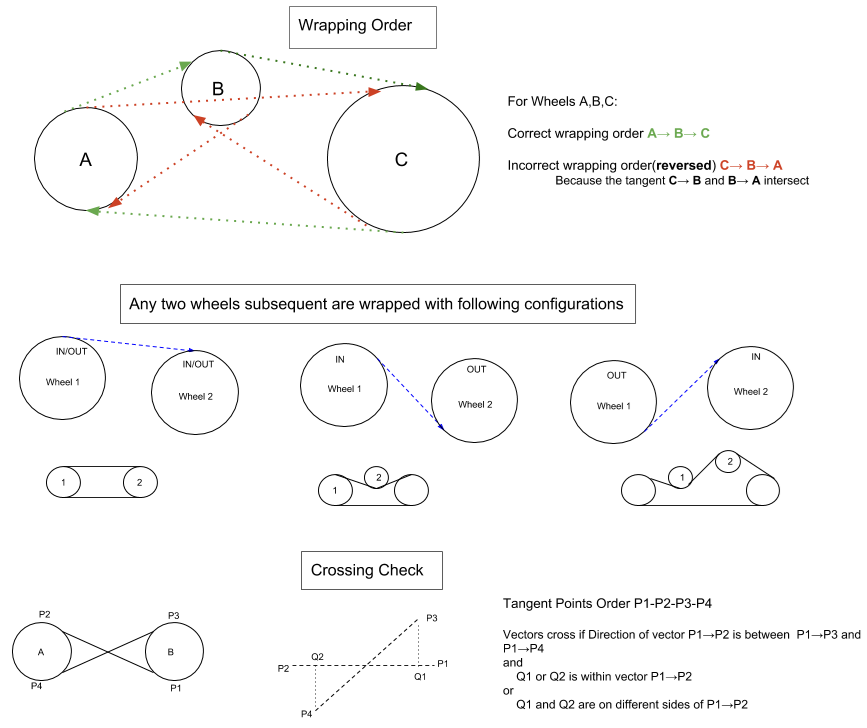

Reverse the wheels list (A-B-C to C-B-A as shown in image above) in order to reverse the sequence in which wheels should be wrapped. Reversing the wrapping order may help to find tangents to wrap the chain around wheels.
