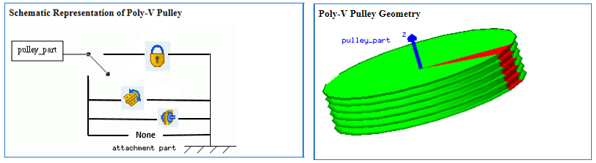

Create Pulley - Poly-V Grooved

Machinery → Create Pulley


For the option
Do the following
Number of Pulley
Enter the number of pulleys to be created.
Note: The maximum number of pulleys allowed per model is 50. The maximum number of pulleys allowed per pulley set is 20.
Axis of Rotation
Axis of Rotation can be one of the following:
■Orientation
■Pick (Marker)
■Global Z
■Global X
■Global Y
Pulley1/2/...
Name
Enter the pulley name. In modify mode, click in this field and press the Enter/Return key to highlight the pulley within the graphics window.
Center
Location
Enter the coordinates or Pick (Markers, View location and so on.).
Geometry

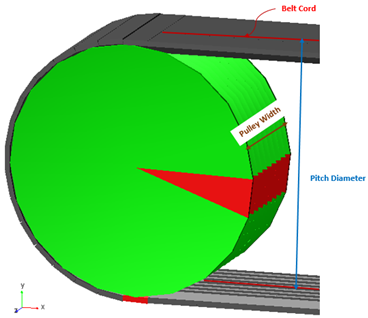

Pulley Width
Enter value for pulley width.
Pulley pitch diameter
Enter the pitch diameter of the pulley. The pitch radius is defined as the distance from the cord in the belt to the center of the pulley when the belt is wrapped around the pulley.
