ACCXYZ

The ACCXYZ measure returns the difference between the acceleration vector of marker i and the acceleration vector of marker j resolved in the coordinate system of marker k. All vector time derivatives are taken in the reference frame of marker l.

Format

ACCXYZ(i[,j][,k][,l])

Arguments


i
The marker whose acceleration is being measured.
j
The marker with respect to which the acceleration is being measured. If j is not specified, it defaults to the global origin. Specify j = 0 if you want to use this default, then specify k or l.
k
The marker in whose coordinate system the acceleration vector is being expressed. If not specified, k defaults to the global coordinate system. Specify k = 0 if you want to use this default, then specify l.
l
The reference frame in which the second time derivative of the displacement vector is taken. Set l = 0 or omit the argument if you want the time derivative to be taken in the global reference frame.

Extended Definition

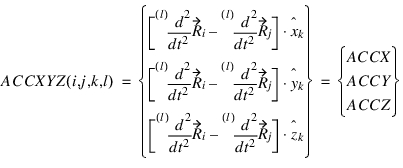

Mathematically, ACCXYZ is calculated as follows:
where:
■ is the displacement of marker i with respect to the global origin.
■ is the displacement of marker j with respect to the global origin.
■ denotes two time differentiations in the reference frame of the l marker.
■ACCX is the ACCX measure.
■ACCY is the ACCY measure.
■ACCZ is the ACCZ measure.
■ is the unit vector along the x-axis of marker k.
■ is the unit vector along the y-axis of marker k.
■ is the unit vector along the z-axis of marker k.

Examples

Unlike VR, the Adams function expression language does not provide support for radial acceleration (or separation acceleration), ACCR. The following variable shows how this quantity could be computed.
VARIABLE/1, FUNCTION = ACCXYZ(21,11) * UV(DXYZ(21,11))

See other Vector measures available.
