What You Will Create

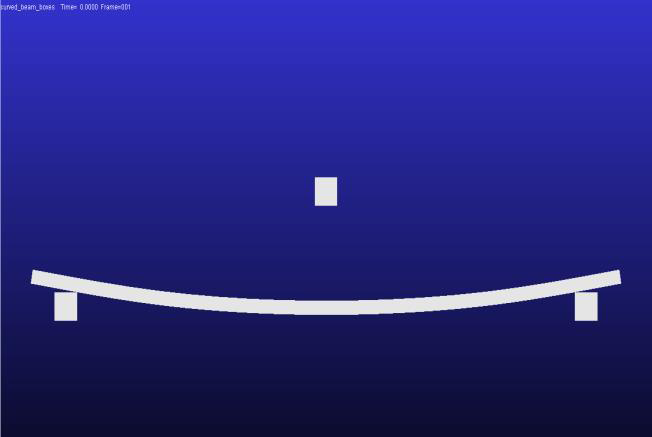

The model is curved beam built up with five beam elements connected by six FE nodes. Both ends are supported by a block using contact interface. The five elements consist one FE_Part. A rectangular block is dropped at the center of beam causing vibration of the beam. To create noticeable amount of vibration, a rubber-like material is used to model the beam.
