What You Will Create

During this tutorial, you will model a spur gear pair consisting of two parts with detailed geometry each connected to ground via revolute joints. One gear will be driven by a prescribed motion; the other will be driven by a 3D contact force between the two geometries.

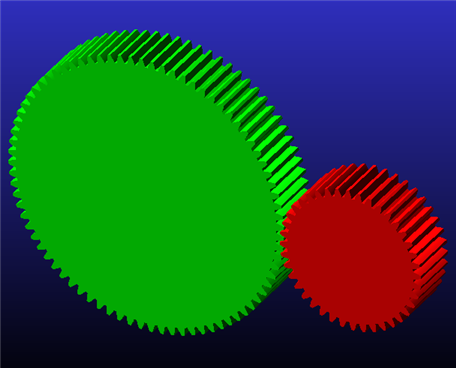

The figure shows the gear pair that you are going to create.
