What You Will Create

During this tutorial, you will model a roller chain system consisting of 2 sprockets and one guide with a tensioning device. Both sprockets will be constrained via revolute joints. One of the sprockets will be actuated with a motion. Contact forces including friction between the discrete chain segments and the sprockets convey the motion.

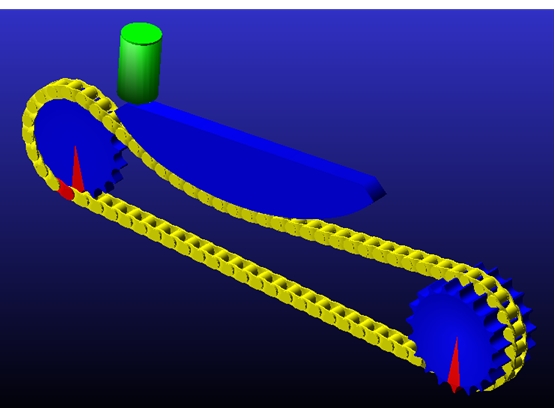

The figure shows the roller chain system using 2D links method that you are going to create.
