Adams PostProcessor Results

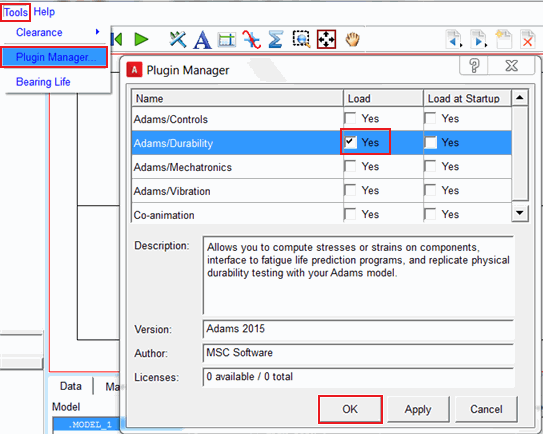

1. From the Tools menu in Adams PostProcessor, load the Adams Durability plugin and click OK:

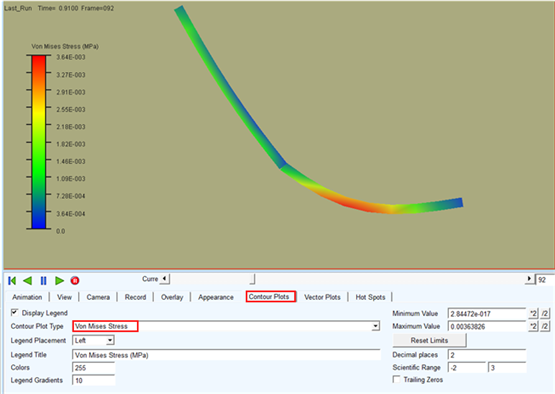

2. From the Contour Plots tab in the animation dashboard select Von Mises stress and re-run the animation:
Note: | Nonlinear flexible bodes only support the recovery of VonMises stress and strain results within Adams PostProcessor. Other stress and strain channels are not supported within Adams, but they can be recovered in an FEA post-processor like Patran or SimXpert using the FEA output files (.op2, .f04) written to the working directory. |
