What You'll Create

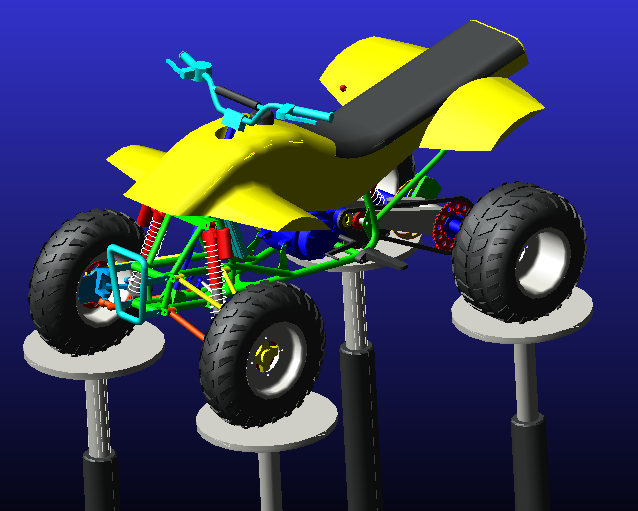

The model is an all-terrain vehicle (ATV) on a 4-post shaker. The vehicle is composed of rigid bodies connected by various joints and compliant elements. Contact forces model the tire-to-actuator interaction. The shakers are driven by motions referencing spline data.
