Example Model Architecture

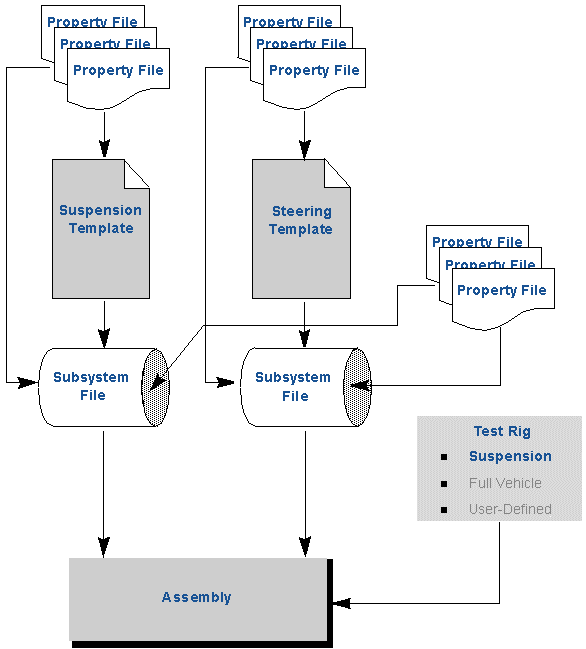

The following figure shows how the different files fit together in the model architecture. In the case of a front suspension assembly with steering, a template uses property files to provide data for components such as springs, dampers, bushings, and so on.
