Select Course


For the option:
Do the following:
Course
Select one of the following:
■ISO Test
■Moose Test
■VDA Test
■User Defined
Initial Dist
Longitudinal Distance in which vehicle run in straight line
1st Long Dist
Longitudinal Distance before 1st lane change
1st trans Dist
Longitudinal Distance in which 1st lane change completed
2nd Long Dist
Longitudinal Distance covered in 2nd lane
2nd Trans Dist
Longitudinal Distance in which 2nd lane change completed
3rd Long Dist
Longitudinal Distance after lane change
1st Lane Offset
Lateral Distance between midline of 1st lane and 2nd lane
2nd Lane Offset
Lateral Distance between midline of 2nd lane and 1st lane

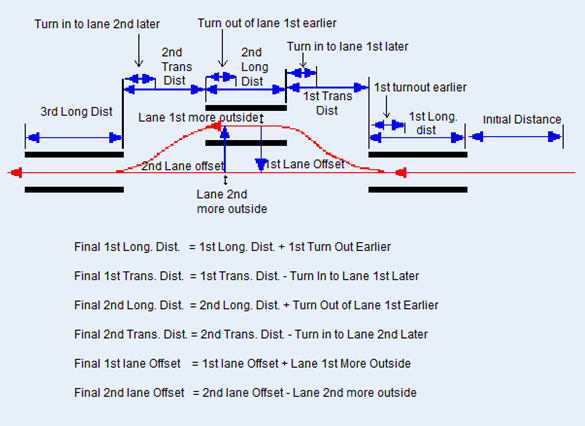

If you select 'Max Radius Path' in Controller Type, Adams Car displays the following options when click on more button:
1st Turn Out Earlier
Enter longitudinal distance in length units
Turn In to Lane 1st Later
Enter longitudinal distance in length units
Turn Out of Lane 1st Earlier
Enter longitudinal distance in length units
Turn In to Lane 2nd Later
Enter longitudinal distance in length units
Lane 1st More Outside
Enter lateral distance in length units
Lane 2nd More Outside
Enter lateral distance in length units
