Perch - LSMB (Lower Shock Mounting Bracket)
The Perch - LSMB (Lower Shock Mounting Bracket) is added in the Double Wishbone Advanced Suspension and Integral Link Suspension templates.

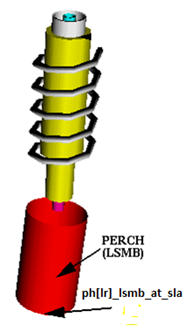

The parameter variable pvs_perch is used to activate Perch - LSMB. Where, '0' and '1' are mapped to Inactive and Active respectively. The following graphic shows a perch - LSMB.
Note: | The bushing at ph[lr]lsmb_at_sla makes use of construction frame cf[lr]_lower_shock_mount to define location dependency. It is recommended that you shouldn't modify location dependency of this construction frame. |
