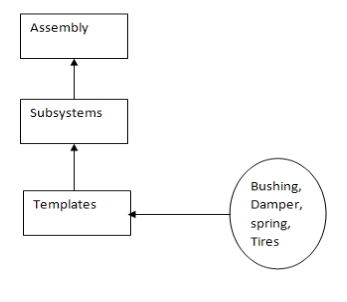

The organization of the Adams Car Truck database
The database can be summarized as follows:
Assemblies | Subsystems | Templates |
|---|---|---|
msc_tractor_unit | msc_tractor_tandem_drive_axle | |
msc_tractor_semitrailer | msc_truck_air_drum_brakes | |
msc_susp_driven_axle | msc_truck_aux_parts | |
msc_susp_trailer_axle | msc_truck_beam_leafspring | |
msc_susp_front_leafs | msc_truck_brake | |
msc_susp_front_3links | msc_truck_cab_suspension | |
msc_truck_drive_axle | ||
msc_truck_drive_wheels | ||
msc_truck_drive_wheels_2 | ||
msc_truck_leaf_3link | ||
msc_truck_powertrain | ||
msc_truck_rigid_cab | ||
msc_truck_rigid_tractor | ||
msc_truck_rigid_trailer | ||
msc_truck_steer_suspension | ||
msc_truck_steer_wheels | ||
msc_truck_steering | ||
msc_truck_trailer_air_drum_brakes | ||
msc_truck_trailer_axle_front | ||
msc_truck_trailer_axle_rear | ||
msc_truck_trailer_brake | ||
msc_truck_trailer_wheels | ||
msc_truck_trailer_wheels_2 | ||
msc_bus_brakes | ||
msc_bus_front_ARB | ||
msc_bus_front_suspension | ||
msc_bus_powertrain | ||
msc_bus_rear_suspension | ||
msc_bus_rigid_body | ||
msc_bus_steering |

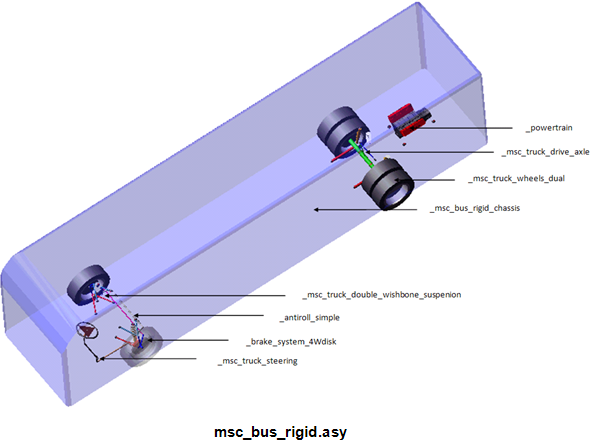

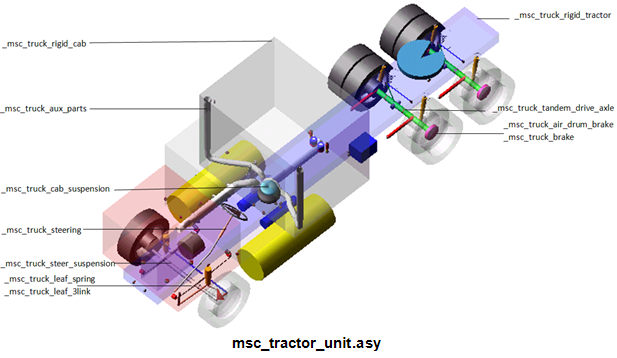

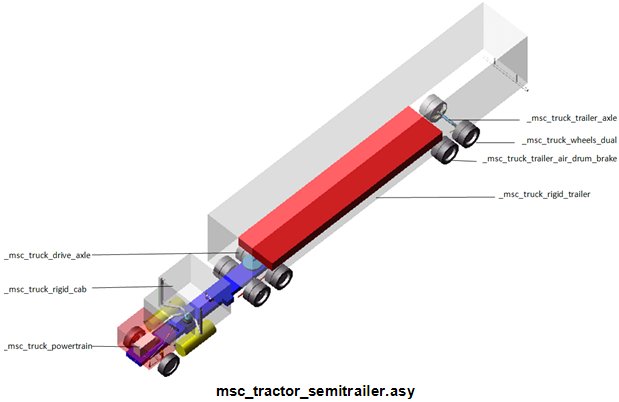

The following figures show complete assemblies and the location of the templates within:
