Appendix D: Data Flow Diagram

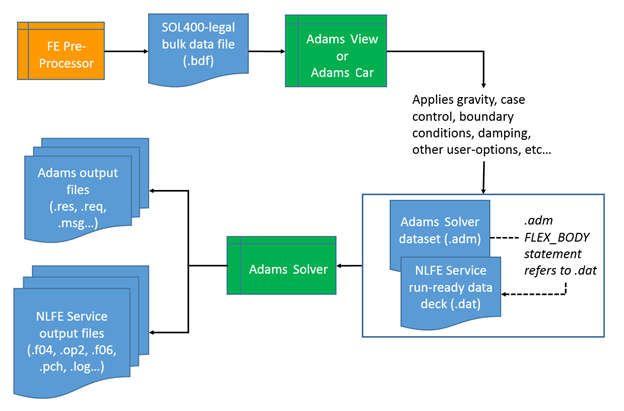

Below is a high-level diagram explaining the data flow for a nonlinear flexible body:

Note:
For more detail on what the Adams interfaces do in creating the NLFE Service run-ready data deck (.dat), see Appendix G: Building the Run-Ready NLFE Service Data Deck.
