Create Belt - Poly-V Grooved

Machinery Create Belt

For the option
Do the following
Belt
Name
Enter the belt name.
Axis of Rotation
Axis of Rotation can be one of the following:
Orientation
Pick (Marker)
Global Z
Global X
Global Y
Reference Location
Enter the value for reference location.
Geometry
Total segments
Optionally enter the total number of segments into which the belt is to be discretized. Use this parameter along with the segment length parameter when the total length of the belt is known and Adams will route a belt of this length through the pulley set and report the resulting tension required to do so.
Segment length
Enter the length of the individual discrete segments into which the belt model is discretized. Using this parameter in conjunction with "Total Segments" the total length of the belt can be provided as an input (see above). If "Total Segments" is not specified, then Adams will model the belt with the greatest number of segments of this length that still provides some tension (that is, greater than zero belt tension in the design position of the model).

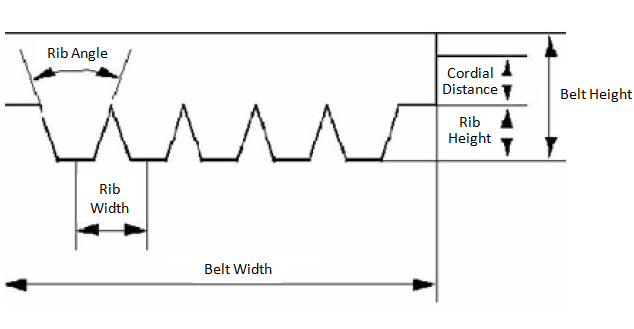

Belt height
Enter the total height of the belt. It is also known as "Nominal Height".
Belt width
Enter the total width of the belt. It is used for graphics only.
Cordial distance
Enter the distance from the rib root to the cord inside the belt.
Rib height
Enter the distance from the rib tip to the rib root.
Rib width
Enter the width of one rib at the root of the rib, also called the rib spacing. It is used for graphics only.
Rib angle
Enter the angle between the flanks of the rib.
Belt stiffness
Stiffness
Geometry & Material
User entered
If you select Geometry & Material, the following options available. If you set Section Connections to Geometry & material, Adams Machinery displays the following options. Learn how Adams Machinery uses the following options to calculate stiffness parameters.
Segment area
Enter the cross-section area of the segment.
Section Inertia
Enter the area moment of inertia of the land-section cross section, about the neutral axis (z-z). It is expressed as unit length to the fourth power. It is sometimes referred to as the second moment of area about the z-axis. The z-axis is along the width of the belt.
For a solid rectangular section:

I = Izz = width * height3/12

where the height of the cross section is (Nominal Height - Rib Height).
Young’s modulus
Enter the Young's modulus of the belt material.
Damping Ratio
Enter the damping ratio. The damping ratio is in time units.
If you select User entered, the following options available:
K axial
Enter the axial stiffness. The stiffness is in force units / length units.
K transverse
Enter the transverse stiffness. The stiffness is in force units / length units.
K torsional
Enter the torsional stiffness. The stiffness is in force units * length units / angle units.
K coupling
Enter the coupling stiffness. The stiffness is in force units.
C axial
Enter the axial damping. The damping is in force units * time units / length units.
C transverse
Enter the transverse damping. The damping is in force units * time units / length units.
C torsional
Enter the torsional damping. The damping is in force units * length units * time units / angle units.
Geometry settings
Belt Graphics
Standard
A simplified belt graphic in the shape of a rectangular prism. Animations may perform faster with this option.
Shell
Fully detailed belt graphic which captures the grooves or teeth of the belt.
Force Graphics
Enable
Force graphic vectors will be displayed while animating results.
Disable
Force graphic vectors will not be displayed while animating results.
