Gear AT Element
The Gear AT Element represents a gear wheel model and stores all its parameters and attributes in Adams View model database. It is used for definition of a Gear AT Force element.

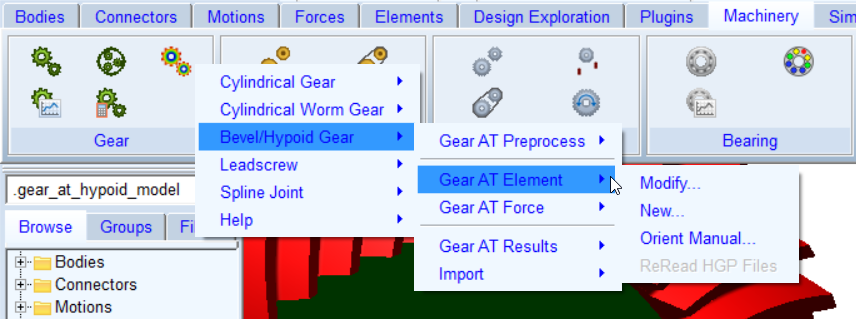

Figure 284 Options for Bevel / Hypoid Gear AT Element
There are following options for the Gear AT Element in Adams accessible from a menu:
Edit existing Gear AT Element | |
Create new Gear AT Element | |
■Orient manual | Orient gear wheel to match mating gear (optional) |
