Gear AT Force


New Gear AT Force
Main
Contact
Friction
Damping
Lubrication
Modify Gear AT Force
Gear AT Force Clearance Check
The Gear AT Force element defines a gear pair contact force by specifying Gear AT Elements and corresponding *.CGS property files created in previous preprocessing steps. All parameters have to be entered in model units but parameters for lubrication expect specific units used in tribology. You can choose from four different modeling options for the gear pair interaction.

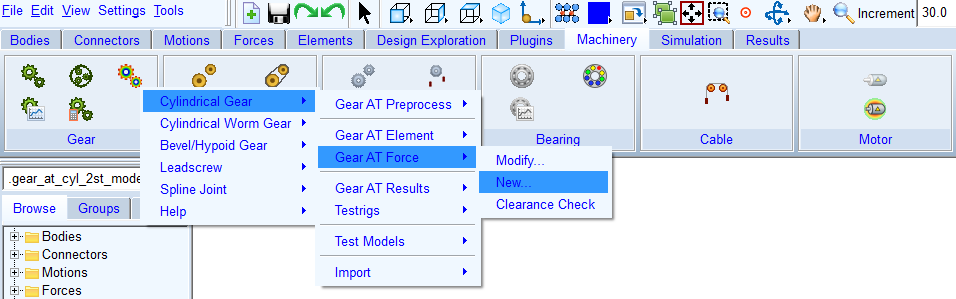

Figure 110 shows the options for the Gear AT Force:

Edit existing Gear AT Force
Create new Gear AT Force
Quick check of gear clearance

Figure 110 Options for Gear AT Force
