Select Request Activity
You can request to output either Standard or Enhanced results sets (Figure 430). All requests are given in model units.
Option Tooth: all components of a tooth are grouped in one request; it could be helpful if one will compare tooth by tooth of one spline joint. Option Teeth: all components of all teeth are grouped in one request; it could be helpful if one will compare teeth of different spline joints (see Figure 429).

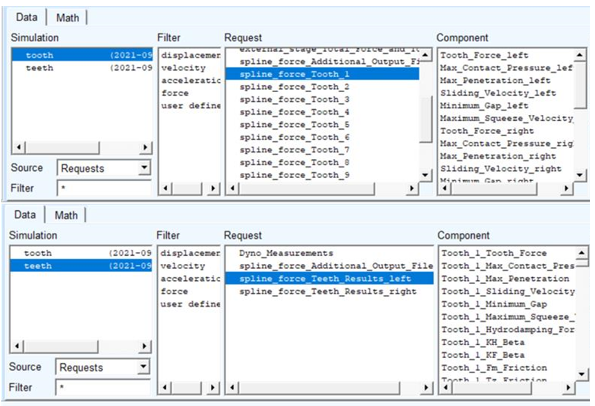

Figure 429 Grouping of components of Tooth and Teeth requests
Figure 430 Selecting the request activity
The same set of requests are available for Rigid Gear and Flexible Tooth contact modeling option.
