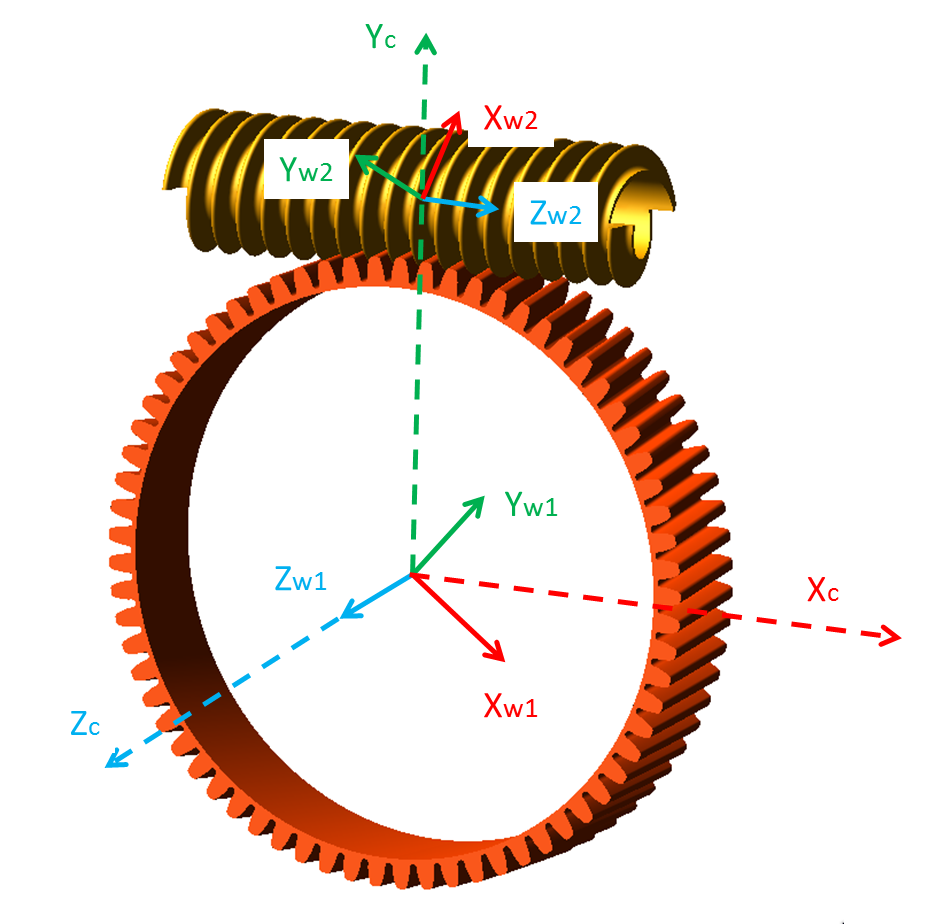

Some of the results are reported in the so-called contact coordinate system (CCS). Each worm gear pair has such coordinate system as shown in Figure 228. The origin of the CCS is located at the reference marker of Gear 1 (w1 - worm wheel). The Z-axis of the CCS is identical with the Z-axis of Gear 1. The X-axis and Y-axis of the CCS lie in the plane normal to the Z-axis at the center of Gear 1. The projection of the vector from Gear 1 center to Gear_2 center (w2-worm) on the normal plane gives the Y-axis of the CCS. The X-axis of the CCS follows from the right hand rule.

It is assumed, that no more than 11 teeth are in contact.





There are following request groups and underlying requests for Standard option of the Flexible Tooth and Full Flex Gear:



There are following request groups and underlying requests for Enhanced option of the Flexible Tooth and Full Flex Gear:



There are following request groups and underlying requests for Standard option of the Gear Fast:



There are following request groups and underlying requests for Enhanced option of the Gear Fast:

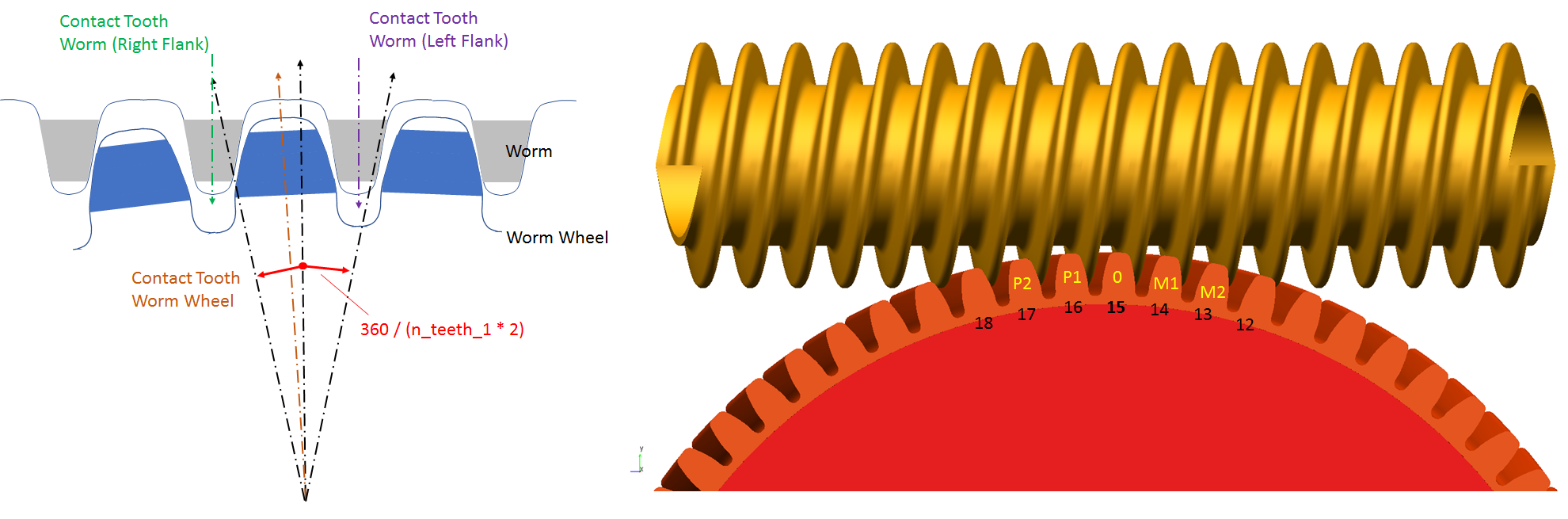

The result of Contact_Tooth_Gear_1 and Contact_Tooth_Gear_2 is explained on Figure 229. If the right flank is in contact, the tooth number is displayed as negative number.

The result of Misalignment_DX, Misalignment_DY, Misalignment_DZ, Misalignment_AY, Misalignment_AZ, Misalignment_Magnitude gives the position and the rotation around the Y-axis and Z-axis of a worm relative to worm wheel in the CCS.

The result of Tooth_xx_Max_Penetration helps to evaluate the selected contact stiffness for rigid body contact. In case of a flexible tooth, only a small penetration should be reported under normal operating conditions. The tooth_0 is the tooth in the middle of the rim of Gear 1 (worm wheel) with the smallest deviation to the YZ-plane of the CCS. The relative teeth numbers -5 to +5 (M5,...M2, M1, 0, P1, P2,...P5) follow the rule of right hand when the thumb points in Gear 1 Z-axis direction; see Figure 229 for the definition of the contact tooth and for gear teeth numbering convention.

The resulting force and torque vectors are measured in the CCS applied on worm wheel are given by FX, FY, FZ_Gear_1 and TX, TY, TZ_Gear_1. The corresponding force and torque vectors applied on worm can be plotted as FX, FY, FZ_Gear_2 and TX, TY, TZ_Gear_2. The resulting force and torque vectors including all components from contact, damping and friction are located in the Total_Force_and_Torque group.

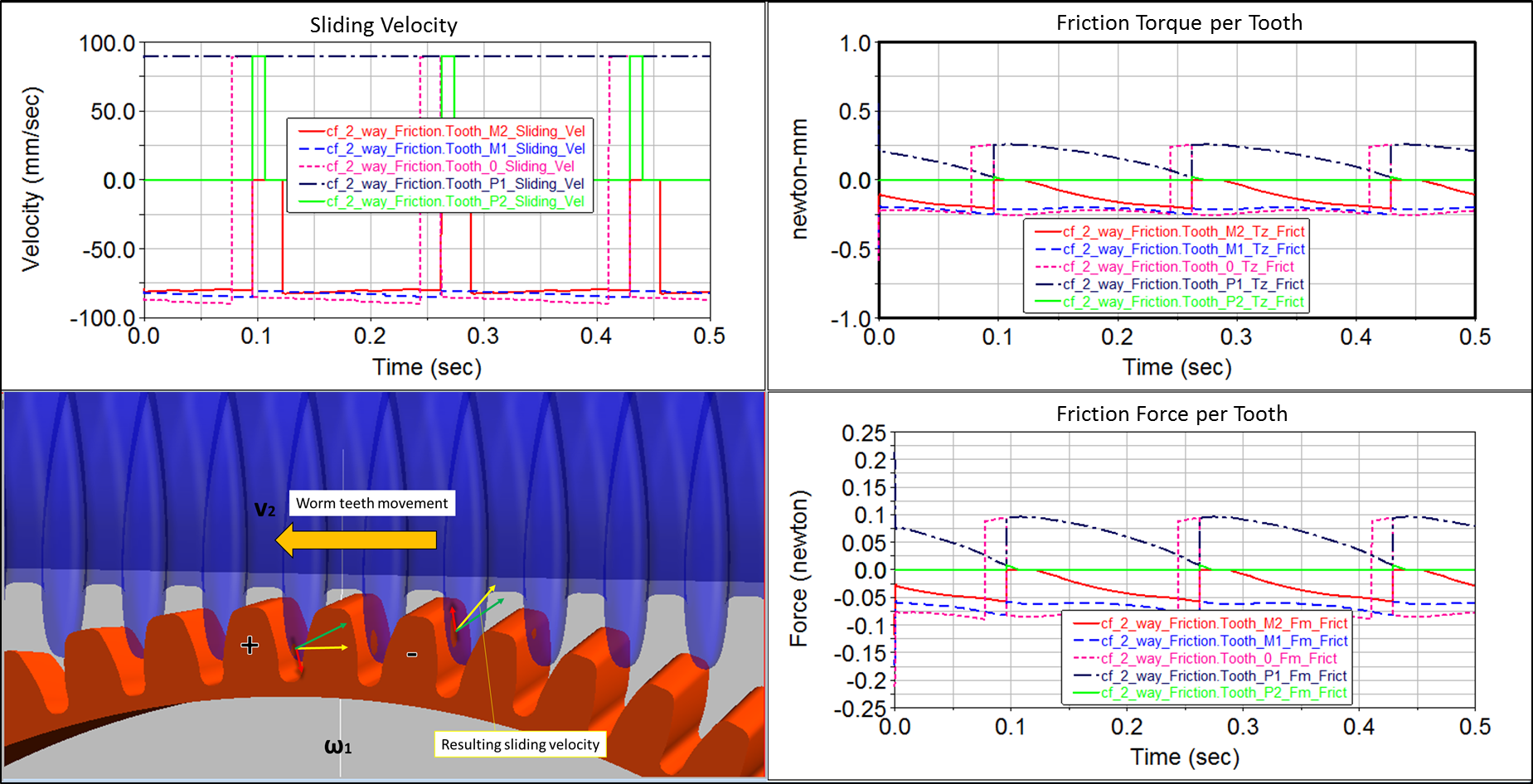

The result of Tooth_xx_Sliding_Vel expresses the maximum magnitude of sliding velocity vector over the tooth contact area. The negative sign indicates that teeth are meshing in the approach portion of the line of action while positive sign indicates the teeth are meshing in the recess portion. This sign convention also holds for the results of the friction force magnitude per tooth Tooth_xx_Fm_Frict and friction torque magnitude per tooth Tooth_xx_Tz_Frict. The sign of the friction force (torque) magnitude acting on a tooth during approach action is negative because it opposes the torque exerted by the working force vector; so it opposes, rather than helps the action. During recess, the friction force (torque) vector is in the same direction as the torque exerted by the working force, aiding the rotation of the worm wheel.



Result of Transmission_Error (TE) in general expresses the difference between ideal and actual gear ratio of the gear pair. The TE value is calculated in angular units and typically for output wheel of a gear pair. The TE would be zero for geometrically ideal involute profiles and rigid gear wheels.



Following results of Full Flex Gear element comprised in the Gear_def_Tooth_0 results group represent deformation of flexible wheel body under the middle tooth in contact. Translational deformations refer to the radial and tangential axes layed over the center of contact area of tooth_0 - Figure 231 - whereas angular deformations refer to X-axis, Y-axis and Z-axis of the contact coordinate system (CCS).



Tan_tdef_Gear_1 - translational deformation of Tooth_0 along tangential direction

Rad_tdef_Gear_1 - translational deformation of Tooth_0 along radial direction

Axi_tdef_Gear_1 - translational deformation of Tooth_0 along axial direction (Z-axis of CCS)

AX_adef_Gear_1 - angular deformation of Tooth_0 about X-axis of CCS

AY_adef_Gear_1 - angular deformation of Tooth_0 about Y-axis of CCS

AZ_adef_Gear_1 - angular deformation of Tooth_0 about Z-axis of CCS





The Figure 232 and Figure 233 shows results of tangential and radial deformation of light-weight flexible wheel body. It depicts correlation of extreme values of deformation to the location of holes.







Following results of Gear FAST comprised in the results group Kinematics are of special importance. The first 5 results represent normalized translational and rotational displacements and the 6th component shows the normalized perturbation due to torque loading. These requests informs you if the model still operates in valid range of generated data stored in *.wgf file.



DY_pert_norm - normalized translational perturbation along Y axis, allowed range < -1.0 , +1.0 >

DZ_pert_norm - normalized translational perturbation along Z, allowed range < -1.0 , +1.0 >

AY_pert_norm - normalized angular perturbation around Y axis, allowed range < -1.0 , +1.0 >

PITCH_pert_norm - normalized angular position perturbation, allowed range < -0.5 , +0.5 >

where :

PITCH_pert_norm = 0.0: neutral position

PITCH_pert_norm = -0.5: starting position

PITCH_pert_norm = 0.5: ending position



TORQUE_pert_norm - normalized torque perturbation, allowed range < -1.0 , +1.0 >



PlusMinus - indicates plus (left) or minus (right) flank is in contact
