What You Will Create and Analyze

You create a front differential, propshafts, and a rear differential. Between the front and rear differential, you create a viscous coupling to allow torque transfer between the front and rear axle, whenever the front wheel loses traction. Both the front and rear differential will have the option of the limited slip differential to allow torque transfer between the left and right wheel.

On the front differential housing, you will apply a dyno element to deliver torque to the model.

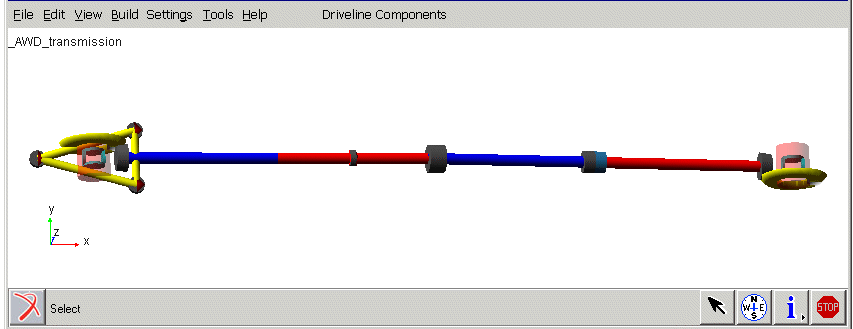

Figure 1 shows the all-wheel-drive driveline template. Note that we turned the icon visibility off and turned the shading on.
