Exporting a Workbook File in Adams Car
1. Make sure that the Assembly to be used in the export is opened
2. Navigate to Tools → Explore → Export to Workbook
3. Input a name for the file to be exported.
4. Select the Assembly.
5. Select entities to export form the various tabs.
6. Supported entities for export currently are:
Hardpoints, Mass properties, Parameter Variables, UDE design parameters, Splines and Property files

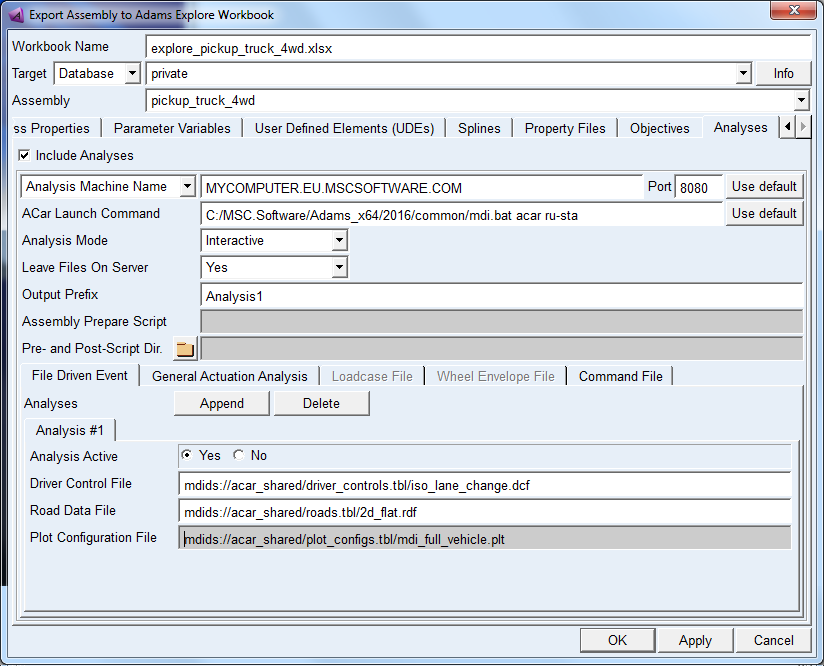

7. Add information about the where the job shall be run and which analyses to be exported, for example like below:
Note that some computer systems are not configured to resolve computer names into IP addresses. In this case, instead input an IP address in the field of the Analysis Machine Name. Or change to "Analysis Machine IP" and press "Use default" to the right of Port to use the default value (which is the local computer).
For more information on the input press F1 to get the Export Assembly to Adams Explore Workbook dialog box help.
Important is that the paths of all files are valid for the computer specified as Analysis Machine.
8. Press OK or Apply.
Note: | The filenames that are referenced in the dialog box and subsequently exported to the workbook must be valid on the computer specified under Analysis Machine Name. |
