Gear AT Force


New Gear AT Force
Main
Contact
Friction
Damping
Modify Gear AT Force
Gear AT Force Clearance Check

The Gear AT Force element defines a gear pair contact force by specifying Gear AT Spindle and Leadscrew nut Elements and corresponding *.TLS property files created in previous preprocessing steps. All parameters have to be entered in model units. You can choose from four different modeling options for the gear pair interaction.

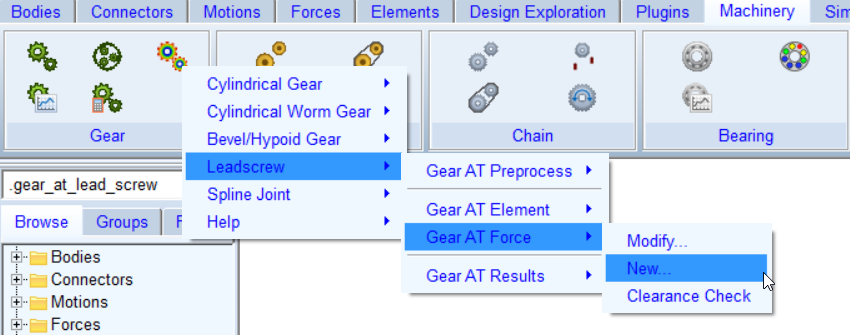

Figure 345 shows the options for the Gear AT Force:

Edit existing Gear AT Force
Create new Gear AT Force
Quick check of gear clearance
Figure 345 Options for Spindle nut Gear AT Force
.
