Gear AT Element
The Gear AT Element represents a spline shaft / hub model and stores all its parameters and attributes in Adams View model database. It is used for definition of a Gear AT Force element.

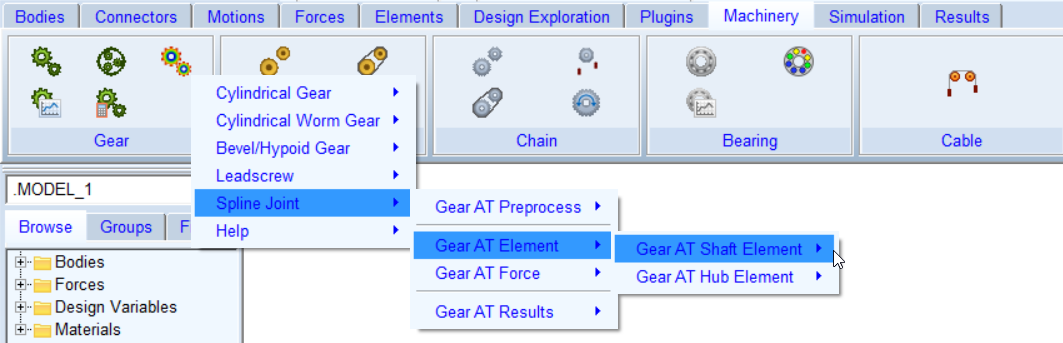

Figure 411 Options for Gear AT Element
There are following options for the Gear AT Element in Adams accessible from a menu:
Edit existing Gear AT Shaft or Hub Element | |
Create new Gear AT Shaft or Hub Element |
The Gear AT Element dialog box has following tabs enabling you to adjust its parameters:
list of general parameters of a spline shaft / hub | |
manage spline modifications, deviations and fitting errors | |
manage graphic features of a spline shaft / hub element |
