Modify Gear AT Element

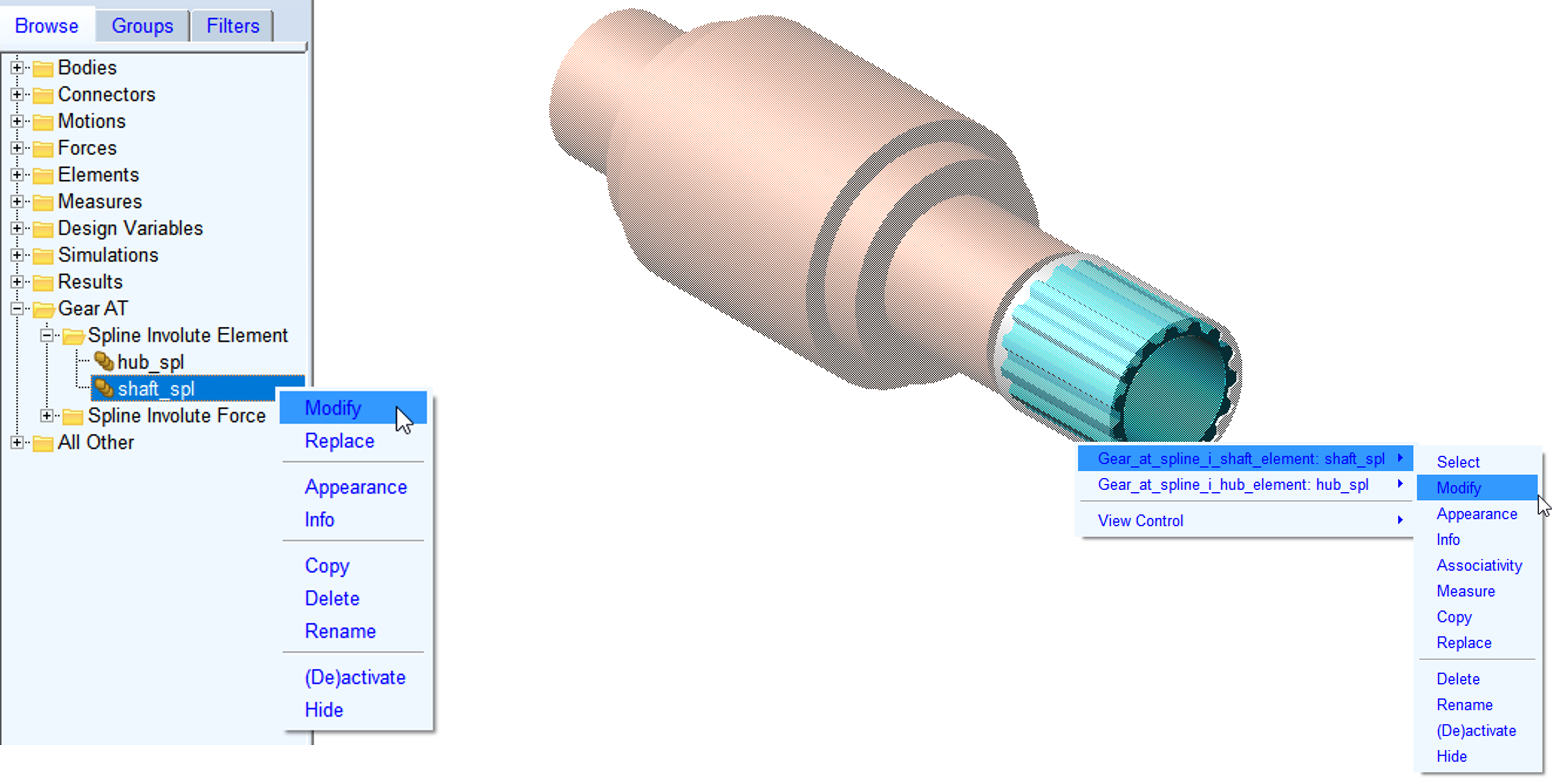

An existing Gear AT Element can be modified by clicking on the object in Adams/View (Figure 418), by right-clicking in the Model Browser and/or through the database navigator.
Figure 418 Modify Gear AT Element

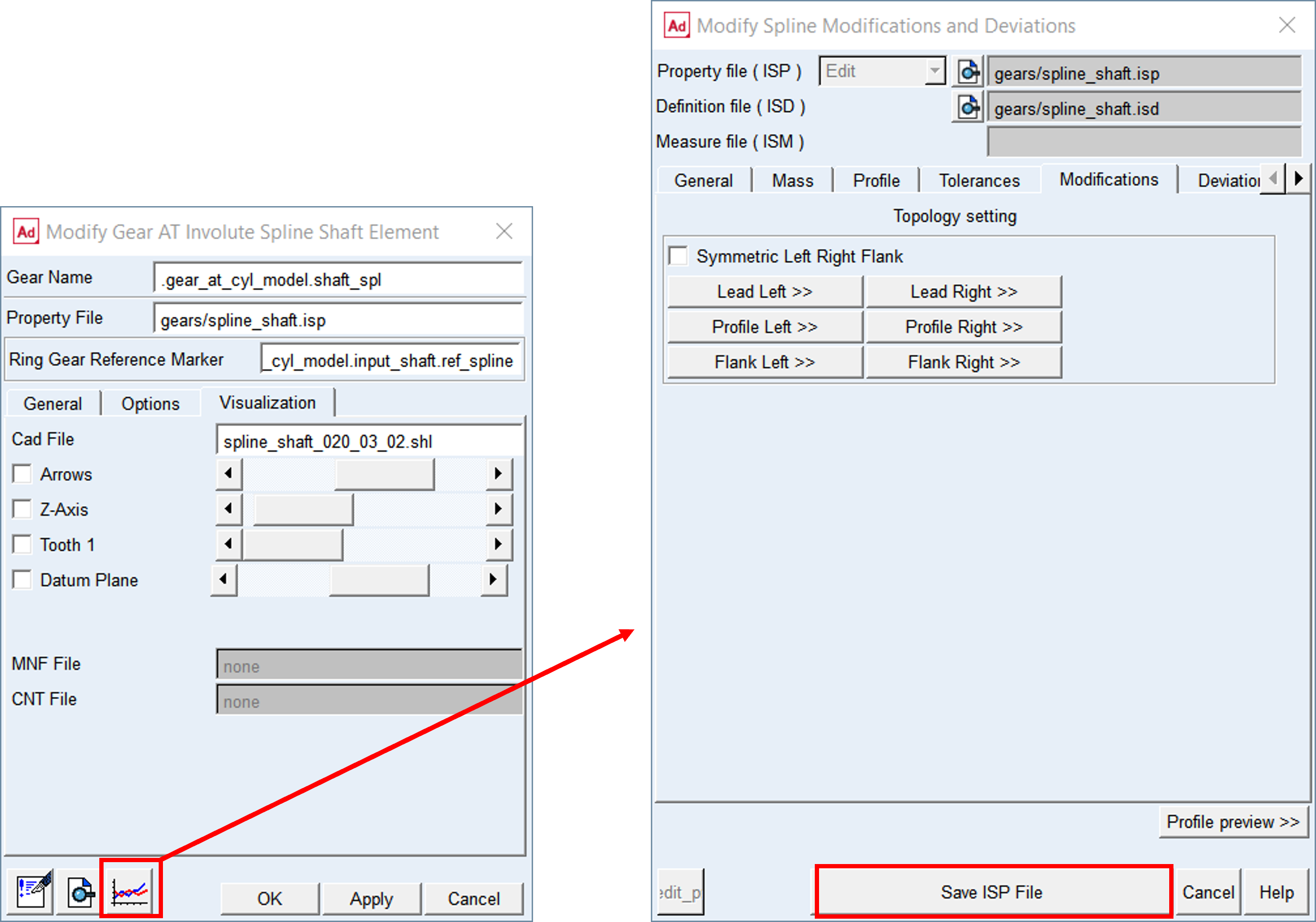

When a Gear AT Element is selected for the modification, a dialog box is popped out, as shown on the left side of the Figure 419. By clicking the icon marked on the left dialog box in the Figure 419, another dialog box is opened for the Modifications. Once the modification values are applied, you need to click the Save isp File button to update the Gear AT Element along with respective *.isp file.
Figure 419 Gear AT Element Modify

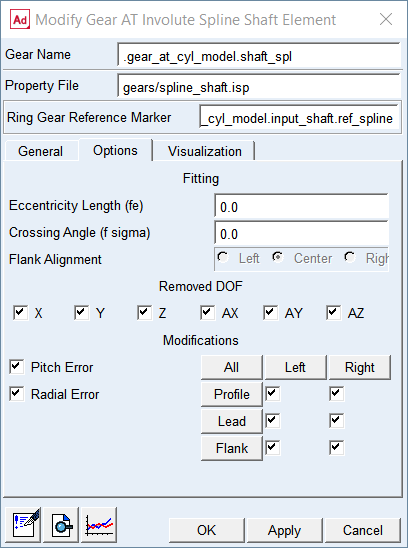

One can quickly activate or deactivate modifications and deviations to evaluate their impact on simulation results by toggle ON or OFF in the Options tab as shown in the Figure 420.
Figure 420 Activate deviations and modifications
