New Gear AT Element
The creation of a Gear AT Element requires the input of a name, the reference to the property file (isp-file) and the position and orientation of the spline shaft / hub defined by the reference marker. The Z-axis of this marker represents the rotation axis of the gear wheel (Figure 412).
The Gear AT Element is attached to the part belonging to the reference marker.
Figure 412 Create New Gear AT Element
General

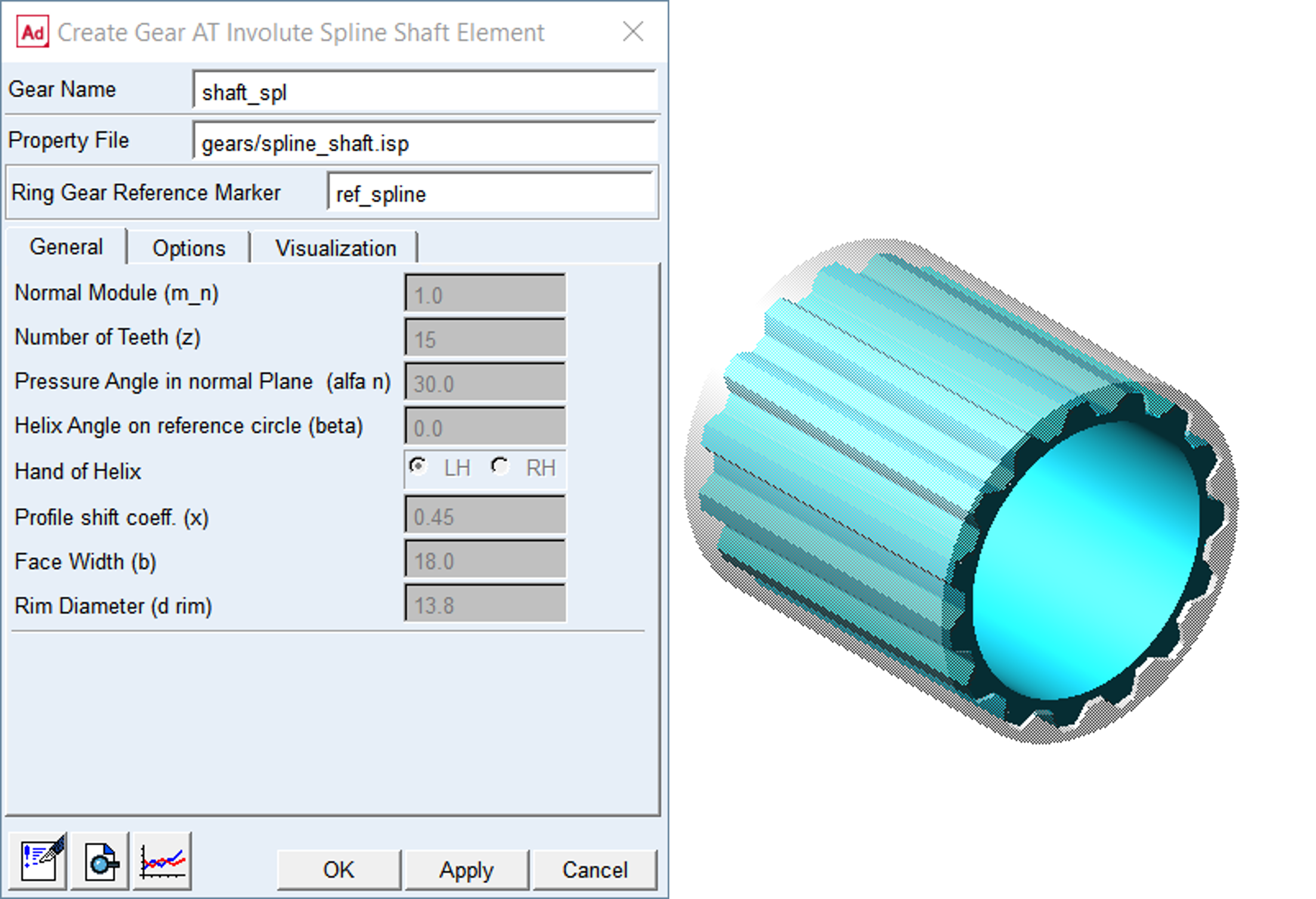

The General tab of the Gear AT Element displays essential geometrical parameters of the spline shaft / hub (Figure 412). You cannot modify any of them here since it would redefine the tooth profile. If you need to do so, follow the process described in Gear AT Advanced Shape Definition and proceed with Gear AT Mesh.
Options

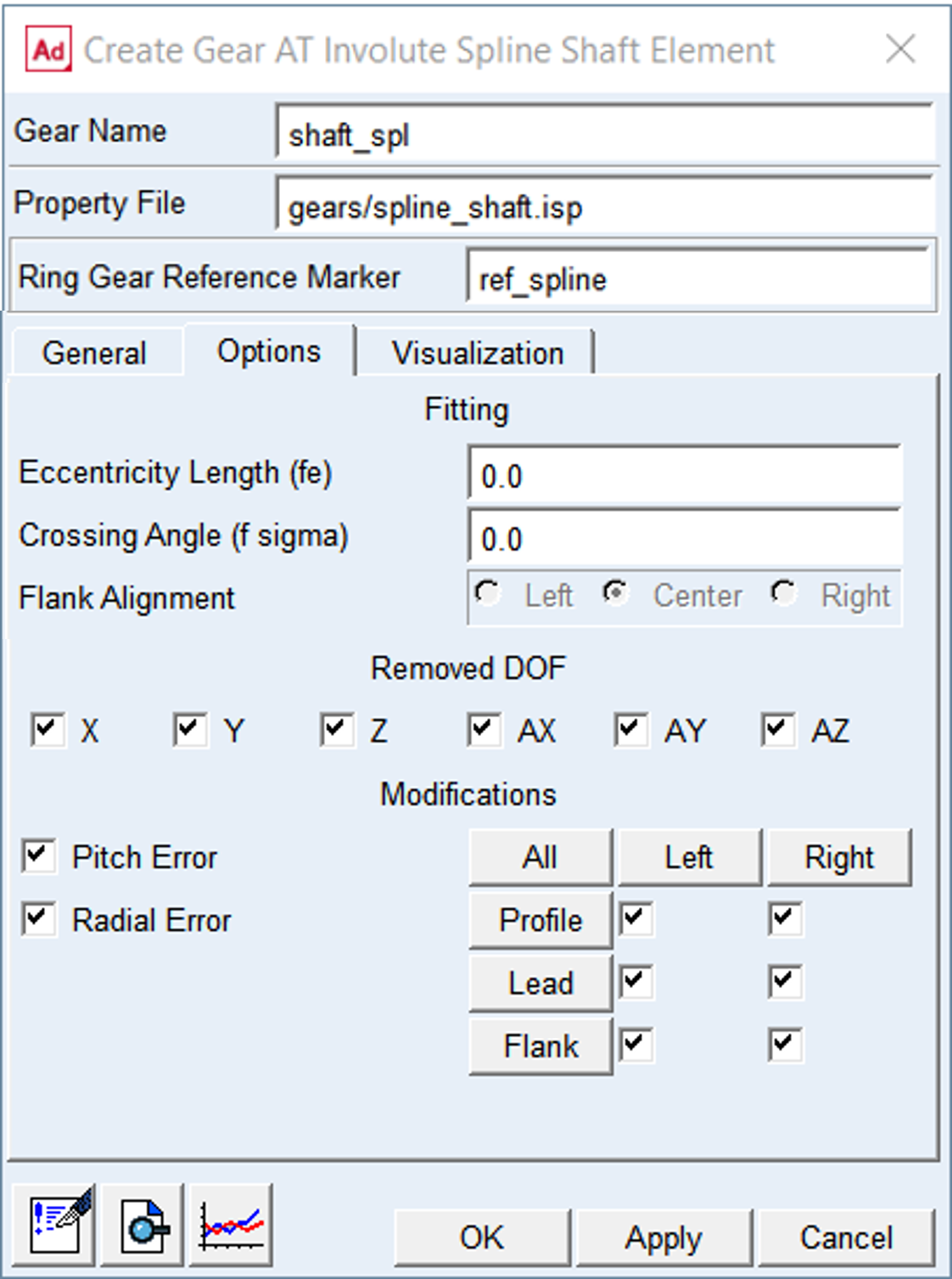

The Options tab allows you to incorporate the fitting errors like Eccentricity length (fe) and Crossing Angle (f). It also allows you to activate and deactivate the Modifications and Deviations defined in respective property file of the Gear AT Element.
Figure 413 Gear AT Element Options
For the options | Do the following |
|---|---|
Eccentricity Length (fe) | Eccentricity is the center offset of the gear axis from the shaft rotational axis of the Gear Element applied along X-axis of the gear reference marker (Figure 413) |
Crossing Angle (f  ) | Crossing angle represents angular misalignment of the Gear Element Z-axis wrt. shaft Z-axis about X-axis (Figure 413). |
Flank Alignment | Select at which flank to eliminate free play in design time thus reduce transient dynamics or help the solver to find static equilibrium of your model at time = 0.0 sec. The choice depends on the direction of torque transfer in the spline joint. Select the Center toggle to keep equal free lay on both flanks. Note: The shell geometry (without micro-geometry) is used to calculate the free play, which might not reflect the actual contact surface used by solver. |
Removed DOF | By default, all degrees of freedom (DOF) of gear element are removed. You can release any degree of freedom, for instance AZ to mimic connection by revolute joint (see Figure 415) |
Modifications | It also allows you to activate and deactivate Modifications and Deviations defined in respective property file of Gear AT Element |

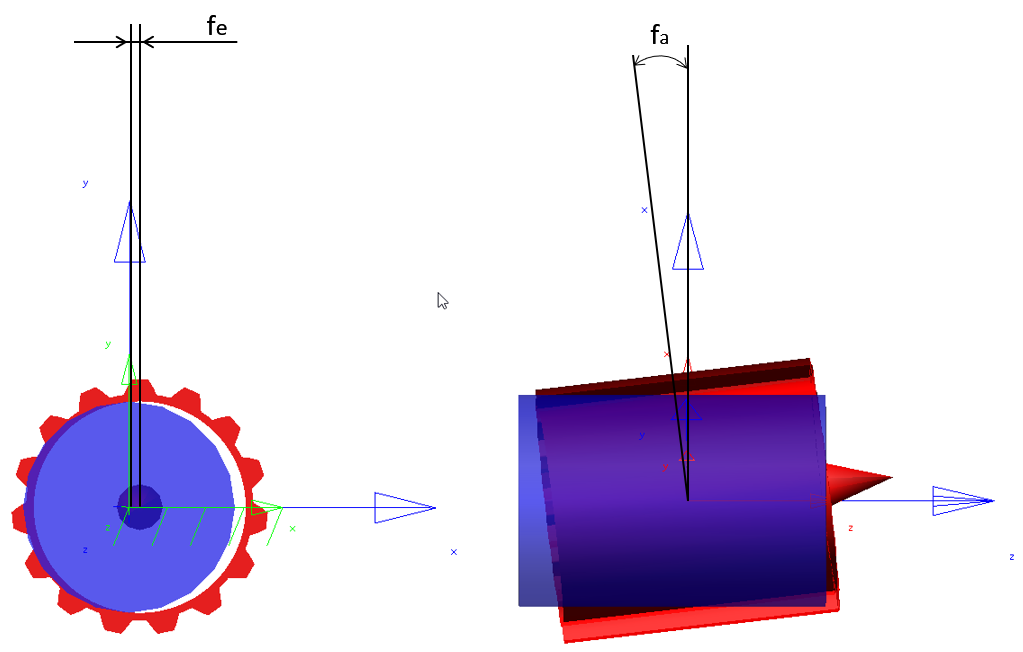

Figure 414 Eccentricity and Crossing Angle
Eccentricity length (fe)
Eccentricity is the centre of the gear axis from the shaft rotational axis of the Spline Involute Element applied along X-axis of the spline shaft reference marker (Figure 414)
Crossing Angle (f
)
Crossing angle represents angular misalignment of the Spline Involute Element Z-axis about X-axis (Figure 414)

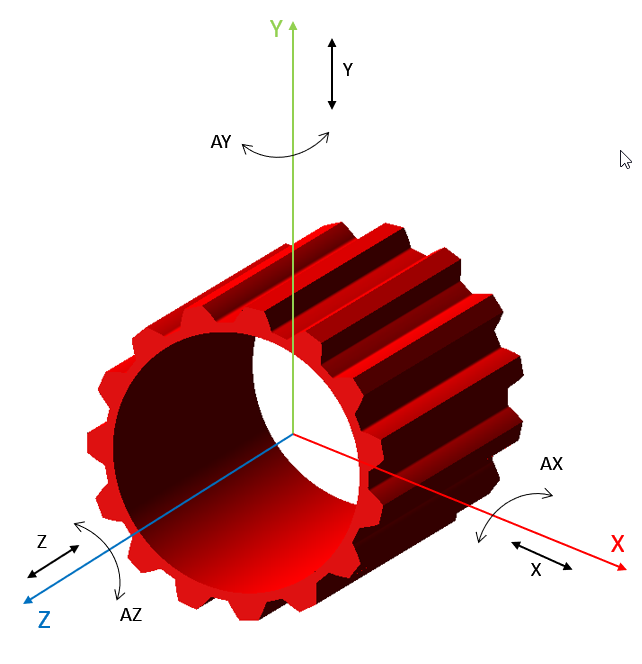

Figure 415 Removed DOF of involute spline element
Visualization

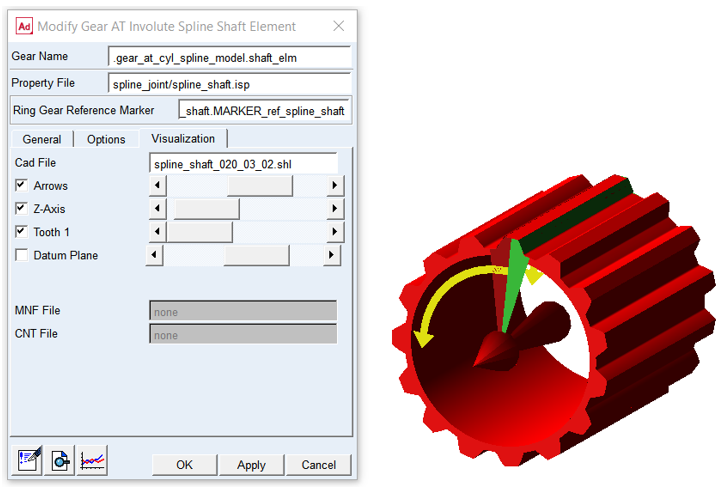

The visualization tab allows you to switch on/off some optional graphic features of Gear AT Element which could help you to get better understanding of results (Figure 416).
Figure 416 Gear AT Element visualization tab
For the options | Do the following |
|---|---|
CAD File | Displays the name of shell graphic file of the Gear AT Element. You can toggle on/off the visualization options and also the scale of visualization can be controlled |
Arrows | Toggle on to show the rotational direction of the teeth numbering starting from the Tooth 1. You can find it helpful when inspecting results from simulation, such as maximum contact pressure over the tooth flank or so, see Figure 82. Let it not cofuse you with the orientation of the gear wheel rotation. You can adjust the scale of graphics with the slider |
Z-Axis | Toggle on to show graphics of the rotational axis of the Gear AT Element. You can adjust scale of graphics with the slider |
Tooth 1 | Toggle on to show graphics of the tooth number one of the Gear AT Element displayed in black color. You can find helpful along with Arrows when inspecting results from simulation as shown on Figure 82 |
Datum Plane | When defining tooth micro geometry it is important to distinguish side tooth (left or right). Datum plane indicates the face of gear to look at when determining the side of tooth flank |
MNF File | Displays the name of Modal Neutral File in case gear wheel would be preprocessed as Full Flex Gear. It is not editable |
CNT File | Displays the name of Contact File in case the gear wheel would be preprocessed as Full Flex Gear. It is not editable |
Figure 417 Datum plane
