Cylindrical Roller Bearing


Preprocess Roller Bearing FE mesh
Main
Roller
Inner Ring
Outer Ring
Inner and Outer Ring Mass
Material Data
FE Data
Preprocess Roller Bearing Contact
Main
Contact
Microgeometry
Create / Modify Roller Bearing element
Main
General
Damping
Visual
There are three bearing classes currently supported for Radial Cylindrical Roller bearings:
■Single row bearings NU – consist of inner ring without collar, rollers with cage assembly and outer ring with collars on both sides
■Single row bearings NJ – consist of inner ring which has a collar on one side, rollers with cage assembly and outer ring with collars on both sides
■Without inner ring – consists of rollers with cage assembly and outer ring with collars on both sides; a role of inner ring is taken by shaft
Prepare Cylindrical Roller Bearing in following three steps:

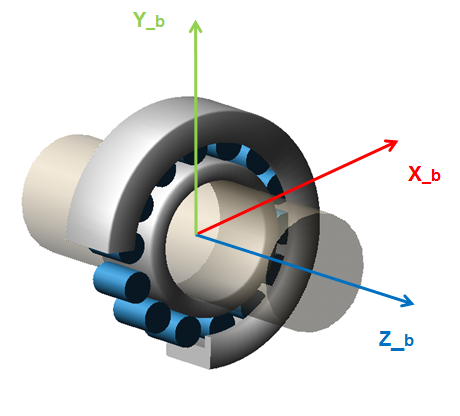

Figure 30 Cylindrical bearing reference marker
