Gear AT Force Clearance Check
The icon
of Figure 292 computes the clearance in the gear pair by using the solids of the gear rim. If clearance - what should be the normal case - is found, it will be shown as depicted by Figure 301. All gear pairs in the model will be checked for the minimum clearance value. Note that solids do not include the micro-geometry.
of Figure 292 computes the clearance in the gear pair by using the solids of the gear rim. If clearance - what should be the normal case - is found, it will be shown as depicted by Figure 301. All gear pairs in the model will be checked for the minimum clearance value. Note that solids do not include the micro-geometry.

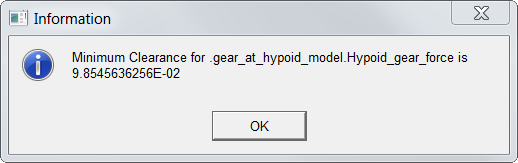

Figure 301 Clearance check
