Gear AT Element
The Gear AT Element represents a gear wheel model and stores all its parameters and attributes in Adams View model database. It is used for definition of a Gear AT Force element.
Figure 98 Options for Gear AT Element

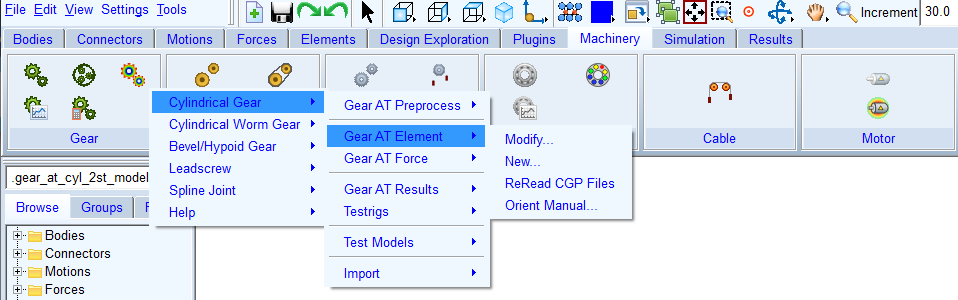

There are following options for the Gear AT Element in Adams accessible from a menu:
Edit existing Gear AT Element | |
Create new Gear AT Element | |
Update all Gear AT elements from cgp-files, when edited externally | |
Orient gear wheel to match mating gear (optional) |
The Gear AT Element dialog box has following tabs enabling you to adjust its parameters:
list of general parameters of a gear | |
manage gear modifications, deviations and fitting errors | |
manage graphic features of a gear element |
