Gear AT Preprocess


Gear AT Advanced Shape Definition
Main
General
Mass
Profile
Tolerances
Modifications
Deviations
Measure
Gear AT Mesh
Main
General
FE Data

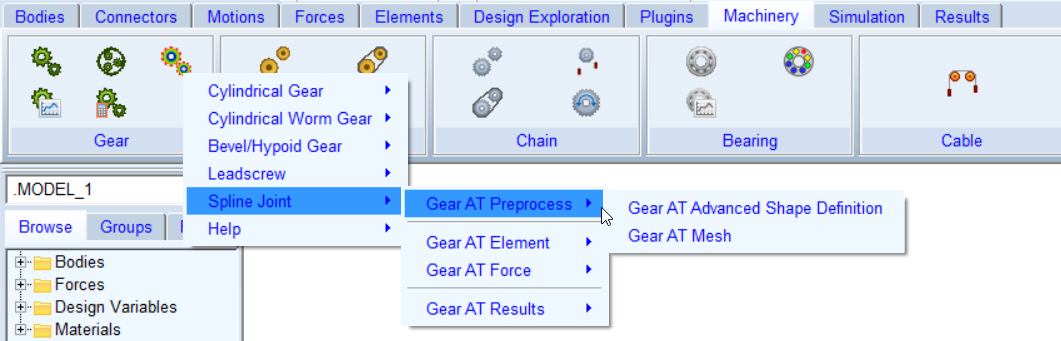

From the Gear AT Preprocess drop down menu as shown in Figure 359, you can access all the tools you need to preprocess your gear data.
Figure 359 Options in preprocessing

The Gear AT Preprocess has 2options as mentioned below
Define tooth profile and properties of a gear wheel
Create Nastran mesh and geometry file for display in Adams
