Gear AT Preprocess

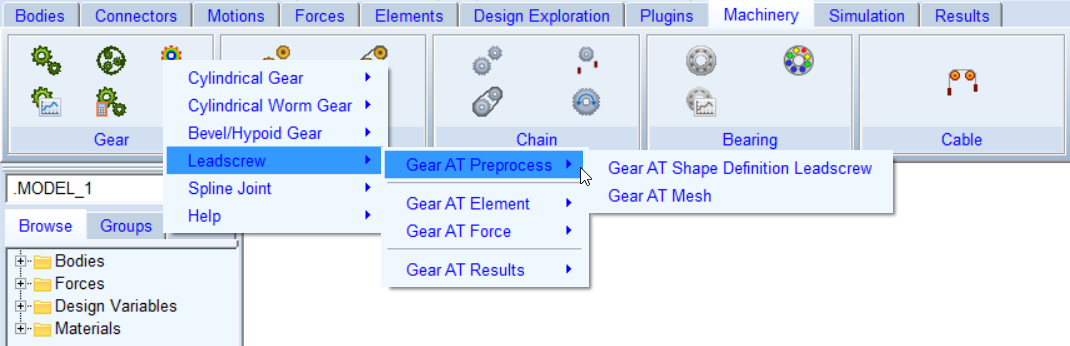

From the Gear AT Preprocess drop down menu as shown in Figure 312, you can access all the tools you need to preprocess your Nut and Spindle data.
Figure 312 Leadscrew preprocessing options
The Gear AT Preprocess has 3 options as mentioned below
Define tooth profile and properties of a Nut and Spindle | |
Create Nastran mesh and geometry file for display in Adams. This preprocessing step is identical for all gear types. |
