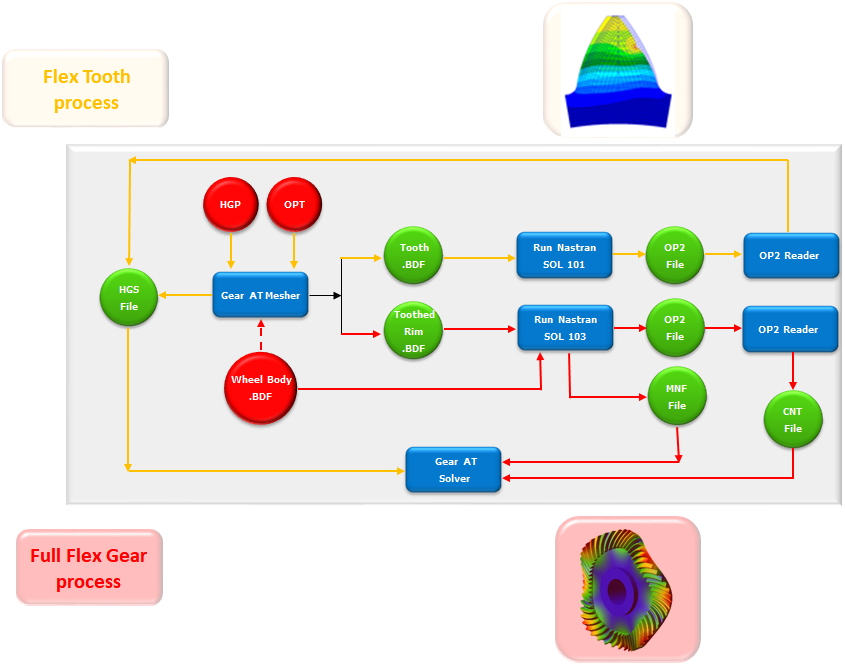

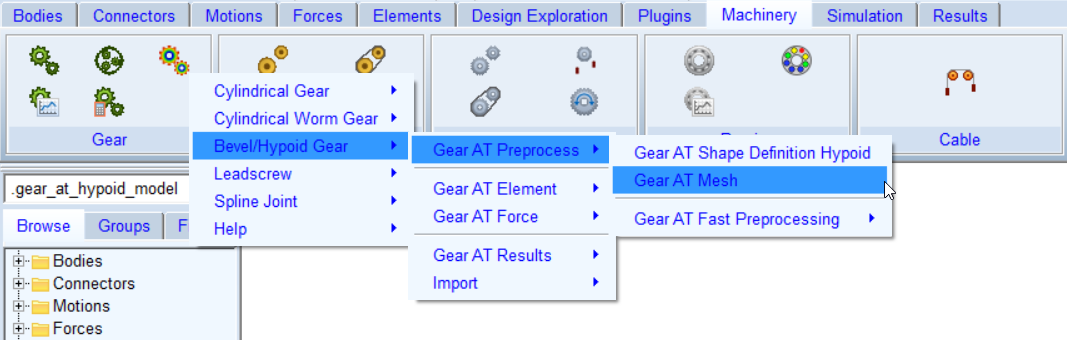

Once the gear data are defined in the *.hgp property file you are ready to preprocess gear tooth FE model to get tooth flank contact surfaces and stiffness matrix for Gear AT contact simulation. The Figure 261 shows how to access Gear AT Mesher interface to preprocess your gear before you could define Gear AT Element in Adams model. The data flow involved in the mesh is depicted on Figure 262.

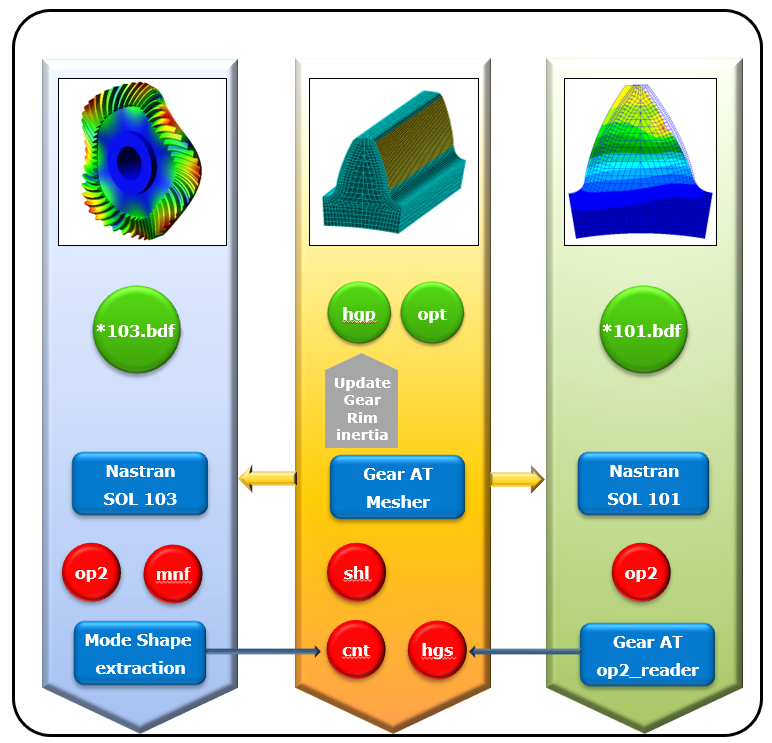

FE preprocessing starts by launching Gear AT mesher (orange color; see Figure 262) with input data from *.hgp file prepared in the Gear AT Shape Definition step and *.opt file which consists of data you input in the FE Data tab of the mesher dialog box. Output of the mesher is Adams geometry *.shl file, flank contact surface for rigid contact modeling in *.hgs file and updated *.hgp file by inertia data of the gear. In order to include gear tooth flexibility in contact simulation, Nastran SOL 101 needs to be executed (green color). The Gear AT op2_reader extends the content of *.hgs file with results from Nastran run. To take into account flexibility of the wheel body (blue color), Nastran SOL 103 is executed which produces MNF and OP2 result file. The MNF file is referenced in the gear property HGP file which is used to create the Full Flex Gear element. In addition, there is CNT file created by the mesher, which is updated by modal results of SOL103. The CNT file is also referenced in the gear property HGP file. Whenever the MNF file is recreated, the CNT file has to be updated with the result of OP2 file by the Mode Shape extraction preprocessor.

The tab options of Create Gear AT Mesh dialog box are

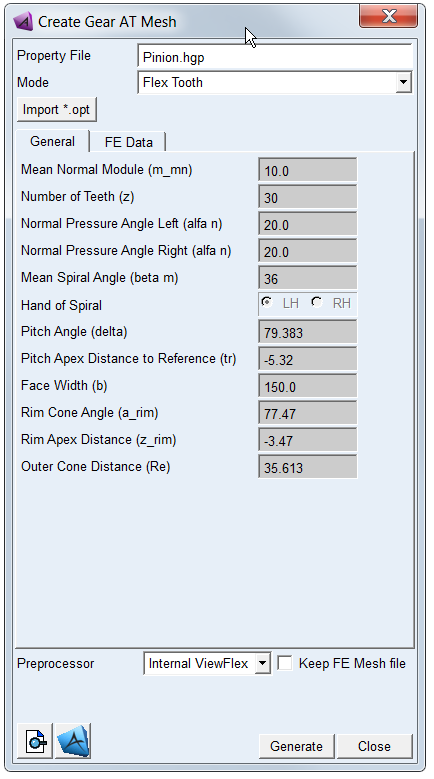

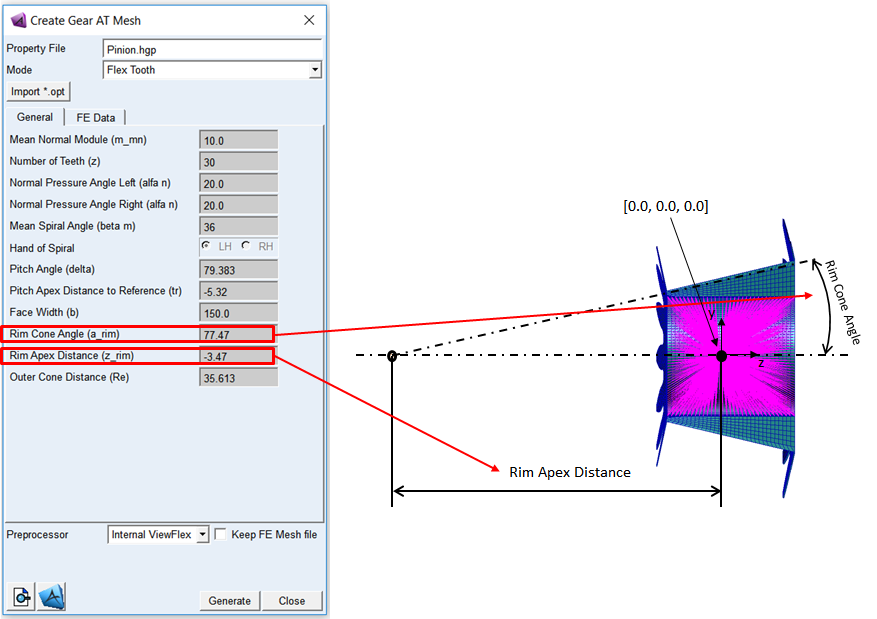

The general tab (Figure 263) displays some parameters of the gear wheel, which are stored in the *.hgp file. However, none of them are editable as the tooth profile was defined in the Gear AT Shape Definition step already.

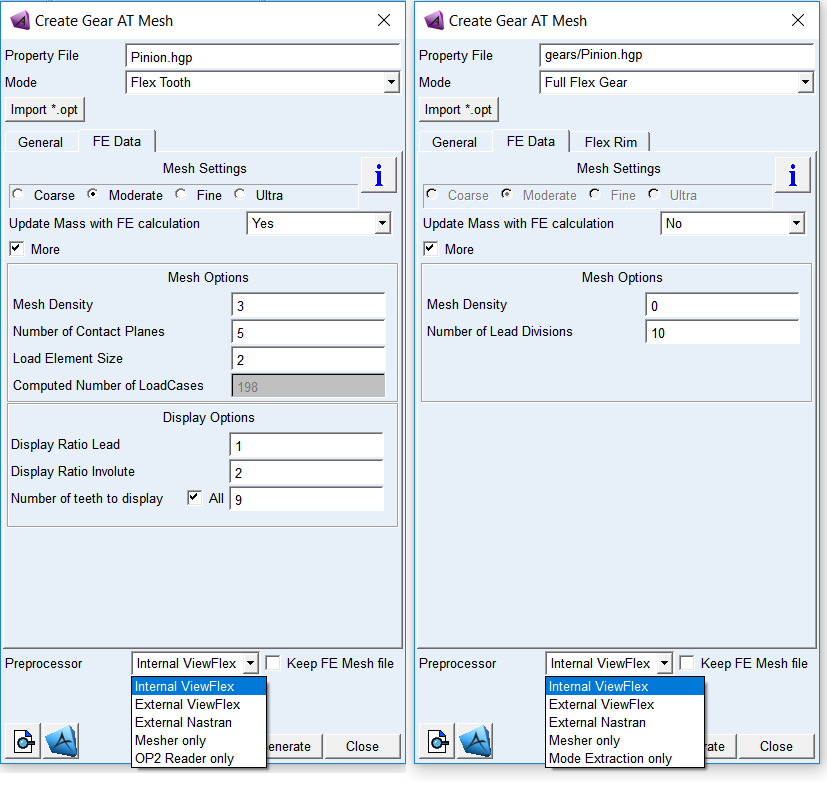

You can control FE mesh resolution as well as contact mesh resolution of flexible tooth FE model and resolution of Adams shell graphics thus performance of the model.



The parameters for the meshing are stored in a file with the extension *.opt. If this file exists, you can retrieve this data through the Import *.opt toggle.

Make your choice about Update mass with FE calculation option. In case you select Yes the Gear AT Element mass properties will correspond to the gear ring only, what is effectively the mass of solid represented by the shell graphics. It is assumed you will define the mass properties of the gear wheel body by the shaft part to which you attach the Gear AT Element. In case you defined mass by User Input in Mass tab of the Gear AT Shape Definition dialog box you should opt for No to not Update mass with FE calculation, hence the Gear AT Element you will define later on will represent mass properties of the gear ring and gear wheel body. In case of Full Flex Gear the mass properties of flexible body are comprised in MNF file, hence the data from the MASS datablock of FGF file are not used.

Choose from Coarse, Moderate, Fine, and Ultra options, which are predefined options to control FE mesh and load mesh division over the tooth flank. You can switch on the toggle More to manually enter all input parameters.

It defines the number of finite elements along the contact line (involute curve of tooth profile); see Figure 265 and Figure 266The contact line represents portion of the tooth active profile (flank), where contact is assumed which is bounded by start contact and end contact. The start contact is close to the root for external and internal gears. Valid input entries for mesh density are 2 to 5, representing 24,32,40 or 48 elements along the contact line. For stress post-processing, the mesh density is always set to 5, thus ensure good quality of results for stress computations in Adams/Durability.

This input parameter allows you to select the preference with respect to accuracy versus CPU-time. A low value for mesh density will result in a coarser Nastran model, what gives generally a short CPU-time. One has to keep in mind, that a coarse model is generally slightly stiffer.

The accuracy of the contact computations in Adams by the Gear AT force is not influenced strongly in quality and in CPU-time by mesh density, as the contact algorithm uses constant mesh division along contact line thus ensure accurate definition of the tooth flank surface.

It defines division of the tooth width into a number of equidistant sections in lead direction; see Figure 266. It is suggested, that one uses a similar distance between the contact planes for the mating gears defined in Gear AT Force.

Contact between gear wheels is checked at each contact plane of wheel 1 of the Gear AT force. Having too small number of contact planes may leads to some numerical noise. The amount of CPU time increases with increasing number of contact planes. You need to verify the appropriateness of your selection.

Following default value is implemented:

It defines the number of finite elements in lead direction per section (between adjacent contact planes); see Figure 266. The length of the section is given by the face width divided by number of contact planes. You can select a value between 1 and 5, where for instance 2 means there are 2 element between the contact planes.

A larger number of this input will increase the size of the FE-mesh and hence the CPU-time of the Nastran analysis. However, it does not influence the value of Computed Number of LoadCases.



This field returns the number of load cases that are calculated in the Nastran Solution 101 what is proportional to the rank of tooth stiffness matrix. This number is proportional to the value of Mesh density and Number of Contact Planes.

Say, for Mesh Density = 2 there are 24 load elements along involute; let’s take 20 Number of Contact Planes =>

(24+1) * (20 + 1) = 525 load cases

It controls resolution of geometrical representation in Adams View. It defines the number of FE elements per one shell geometry element in lead direction. The input value of 1 means fine, 2 is for normal and 3 for coarse resolution for the shell graphics.

It controls resolution of geometrical representation in Adams View. It defines the number of FE elements per one shell geometry element along involute direction. The input value of 1 means fine, 2 is for normal and 3 for coarse resolution for the shell graphics.

It defines the number of teeth to be created for shell geometry. The purpose of this entry is to define segment of the gear wheel.

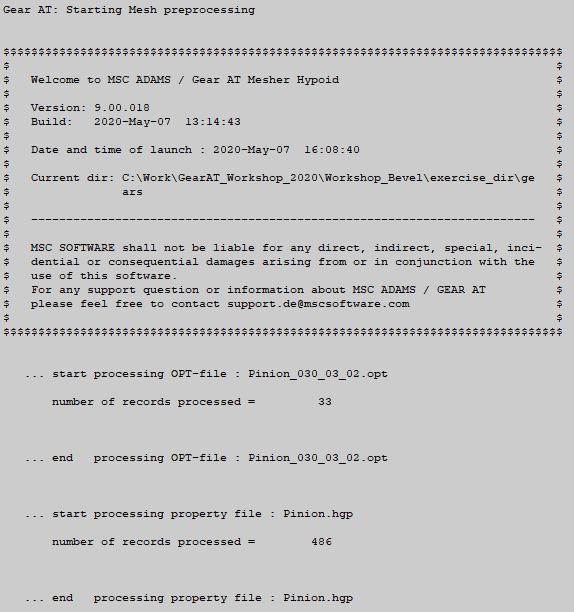

The Gear AT Mesh will be started and you will see the echo of the input data (contents of the *.opt file and *.hgp file) and the start of the actual meshing as shown in Figure 268. The option 'quiet' suppresses the output to the screen. The *.hgs file contains all information about the geometry of the tooth. If a flexible tooth has been requested, the *.hgs file will be expanded by the op2-reader with results from Nastran.

The file name of the *.hgs file and bulk date file of the gear tooth is composed as *_xxx_yy_zz.hgs and *_xxx_yy_zz.dat where:

The filename of the *.shl file is composed as *_xxx_yy_zz.shl where:

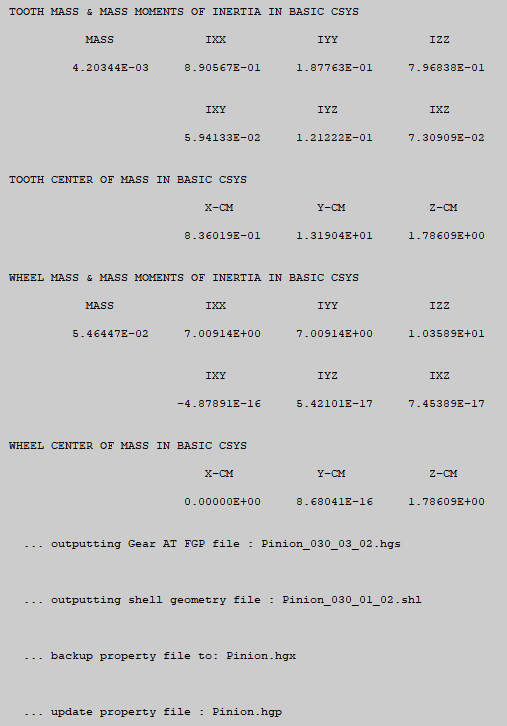

Gear AT mesh also reports the results of gear ring inertia computation which is done if update mass with FE calculation is set to “yes” (Figure 269). Figure 270 shows the successful termination of the Gear AT Mesh.

[

If you requested generation of a flexible tooth, Nastran or ViewFlex will be launched (Figure 262 and Figure 271). Please be reminded, that the CPU-time for Nastran increases with increasing number of contact planes, mesh density and load element size.

The process of Figure 271 proceeds by execution of Gear AT op2-reader; see Figure 272. This processor reads the data stored by Nastran in the *.op2 file and appends retrieved data to the *.wgs file.

If Nastran computation was not successful, Gear AT op2-reader should issue an information message and indicate unsuccessful termination. Please check the *.f06 file and mesher.log file; there you should find a hint about the cause of the abort by Nastran.

The button displays the contents of the *.hgp file.

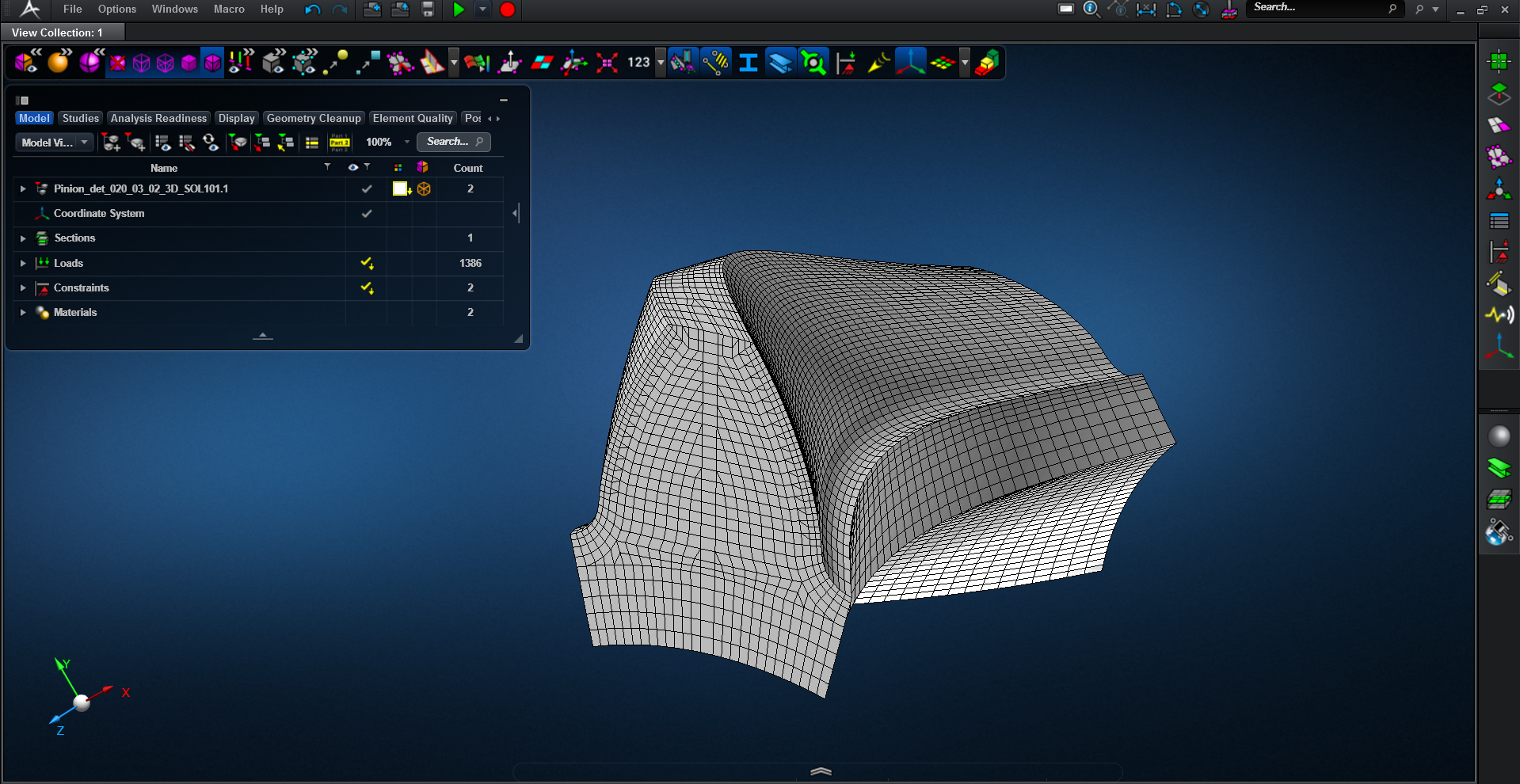

The button opens the Nastran bulk data file in Apex. Please, make sure you opt to Keep FE Mesh file in order to preserve Nastran input deck (*.bdf, *.dat) file. Figure 273 shows the example of mesh for a tooth.

To preprocess Full Flex Gear one has to define FE properties of a flex rim. Here you need to input FE model of wheel body in Nastran format and interface node to attach Adams flexible body to a shaft. As result you get MNF and CNT file which will be referenced in *.hgp so you can create full flex gear element in Adams.



Before preprocessing the Full Flex Gear element, you might find helpful to read the Adams Flex online help - see Translating FE Model Data - FE Model Requirements.

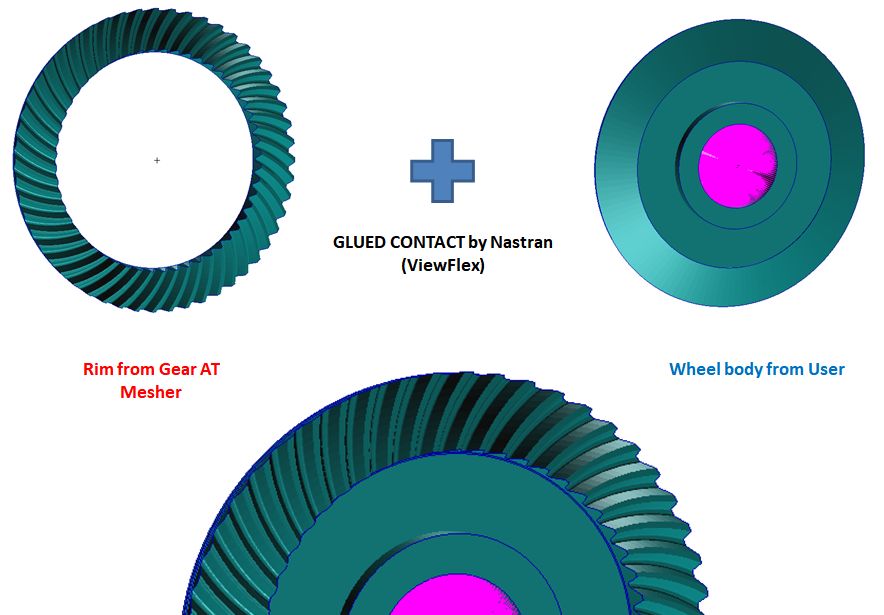

The full flex gear FE model consists of the wheel body provided by the user and toothed rim generated by the Gear AT mesher. These two FE models are joined together by Nastran glued contact. The distance below which a node is considered touching a body is set to 0.05 mm – see ERROR parameter in BCONPRG card of a *_SOL103.bdf file and read Nastran documentation.

Currently there are following prerequisites for the user FE model of wheel body; see Figure 277:



Please make sure your wheel body bulk file has following Nastran cards comment out; see Figure 278:

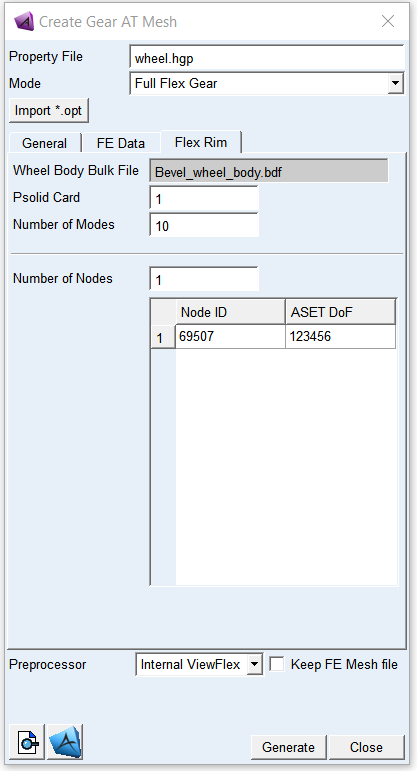

Make sure you enter correct ID of PSOLID Nastran card of wheel body thus Nastran can make glue contact between wheel body and tooth rim; see Figure 279.

Enter appropriate number of fixed boundary normal modes (also known as component dynamic modes) to define sufficiently large modal basis of your wheel body. Whenever possible, you should always correlate eigen frequencies of your FE model to the modal test data. Note that default value of 10 will be most probably insufficient to capture real deformations of the flexible wheel body structure.

When you create a Full Flex Gear element in your Adams model, you select reference marker on a part to attach the gear element to. Gear AT creates for you an appropriate constraint to attach gear element to the part which takes all 6 DoF. Therefore, there should be at least one attachment node defined (also known as interface node) in the MNF file.

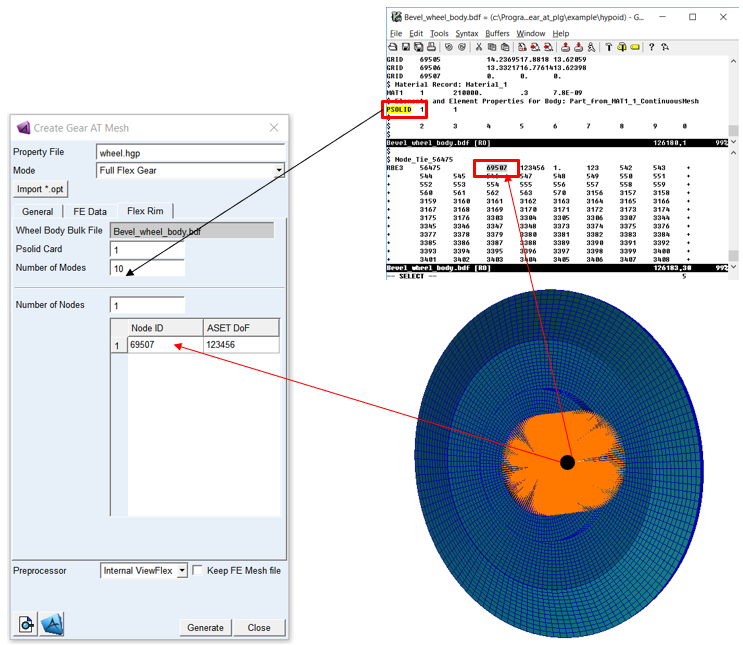

Enter the node id of a gear attachment. This node could belong either to RBE2 or RBE3 element, see Figure 279. The one which is used to attach a gear element to a shaft should be located at origin of basic system of your FE model. In order to avoid the use of “PARAM, AUTOMSET, YES” which is required for defining ASET with attachment nodes belonging to RBE3 element, there is CBUSH element created per attachment node along with coincident node which becomes so called interface node in Adams. Therefore, you will find a different ID of the interface node than specified in this table cell.

Enter the degree of freedom (DoF) per attachment node of your wheel body FE model. When you build a flexible body into an Adams model, you interface with the body using a variety of attachments, either joints or forces. In Adams Flex, you can model the variable boundary conditions at attachment points, which are nodes that have been idealized for attachment, by preserving all six Cartesian degrees of freedom (DoFs) of those points as you export the flexible body from your finite element analysis (FEA) program. An attachment point is equivalent to a superelement exterior grid point. Each attachment point normally contributes six modal DOF. Corresponding to each attachment point DOF is a constraint mode, which is a static mode shape due to a unit displacement of that DOF while holding all other DOFs of all attachment points fixed. A large number of attachment points can result in unwieldy data files and can significantly impact CPU time, if the associated modes are enabled during an Adams dynamic simulation. It is advised to limit number of constraint modes by prescribing adequate DoFs per attachment node. For instance, if you intend to model spherical joint, it is enough to preserve translational DoF for the ASET (123). However, the ASET for attachment of the gear element to a shaft should always preserve all DoFs (123456).

It is good practice to always verify flex body after importing to Adams View (after Gear AT element for Full Flex Gear has been created). Especially check the flexible body mass and make sure that the first 6 frequencies are very close to 0.0 Hz (rigid body modes) and ensure that all these rigid body modes are disabled. In case there are 12 rigid body modes the glue contact failed most probably due to higher distance between wheel body and toothed rim FE structures than the ERROR specified in a *_SOL103.bdf file.

For more information about verifying flexible bodies, see Building Flex Body Models - Verifying Flexible Bodies in the Adams Flex online help.
