Gear AT Preprocess
From the Gear AT Preprocess drop down menu as shown in Figure 170, you can access all the tools you need to preprocess your worm and gear data.

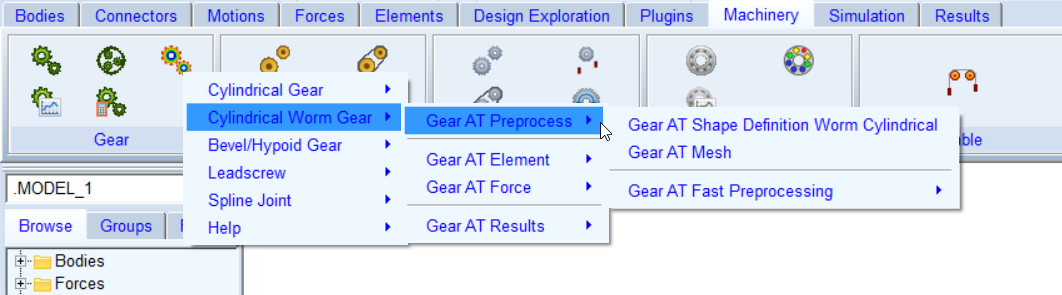

Figure 170 Cylindrical Worm preprocessing options
The Gear AT Preprocess has 3 options as mentioned below
Define tooth profile and properties of a worm and worm wheel | |
Create Nastran mesh and geometry file for display in Adams. This preprocessing step is identical for all gear types. | |
Pre-calculate tooth contact |
