Gear AT Preprocess

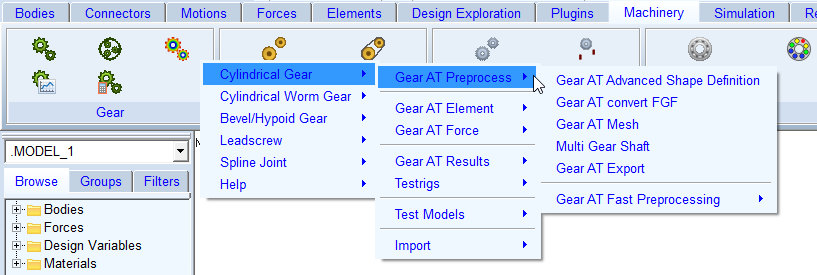

From the Gear AT Preprocess drop down menu as shown in Figure 6, you can access all the tools you need to preprocess your gear data.
Figure 6 Options in preprocessing
The Gear AT Preprocess has 5 options as mentioned below
Define tooth profile and properties of a gear wheel | |
Convert FGF file to CGP file | |
Create Nastran mesh and geometry file for display in Adams | |
Create one or more Full Flex Gear elements per single shaft flexible body. | |
Export FE mesh of gear tooth with micro geometry to BDF file | |
Pre-calculate tooth contact |
